Description
Castellini AlphaScan WR
The AlphaScan WR is Castellini’s wired 3D intraoral scanner. Weighing just 175 g, it is one of the lightest and easiest to handle intraoral scanners on the market, with plug and play connectivity through a single USB-C cable, AI-powered acquisition, cloud features and treatment planning tools that reduce chair time.
Key Features:
-

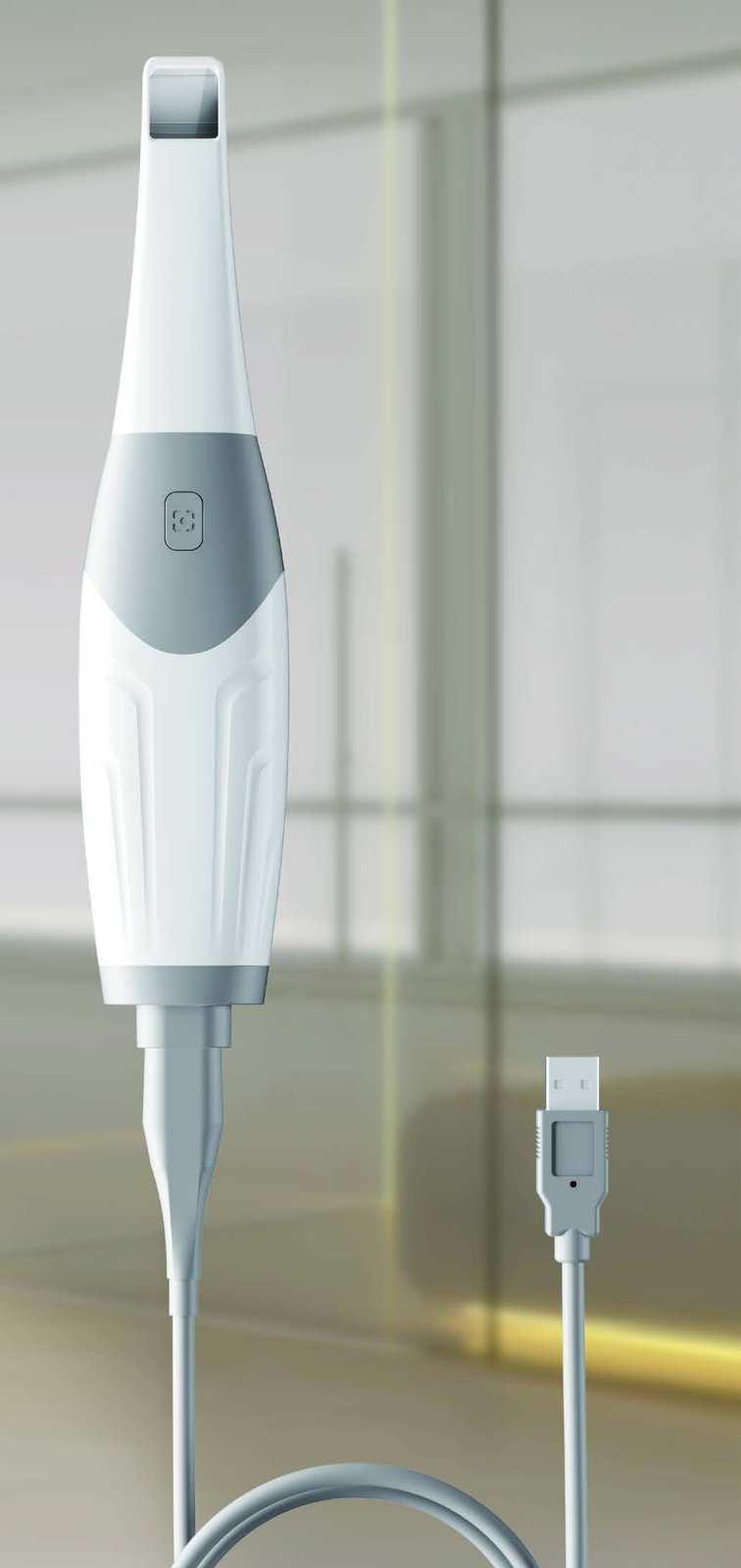

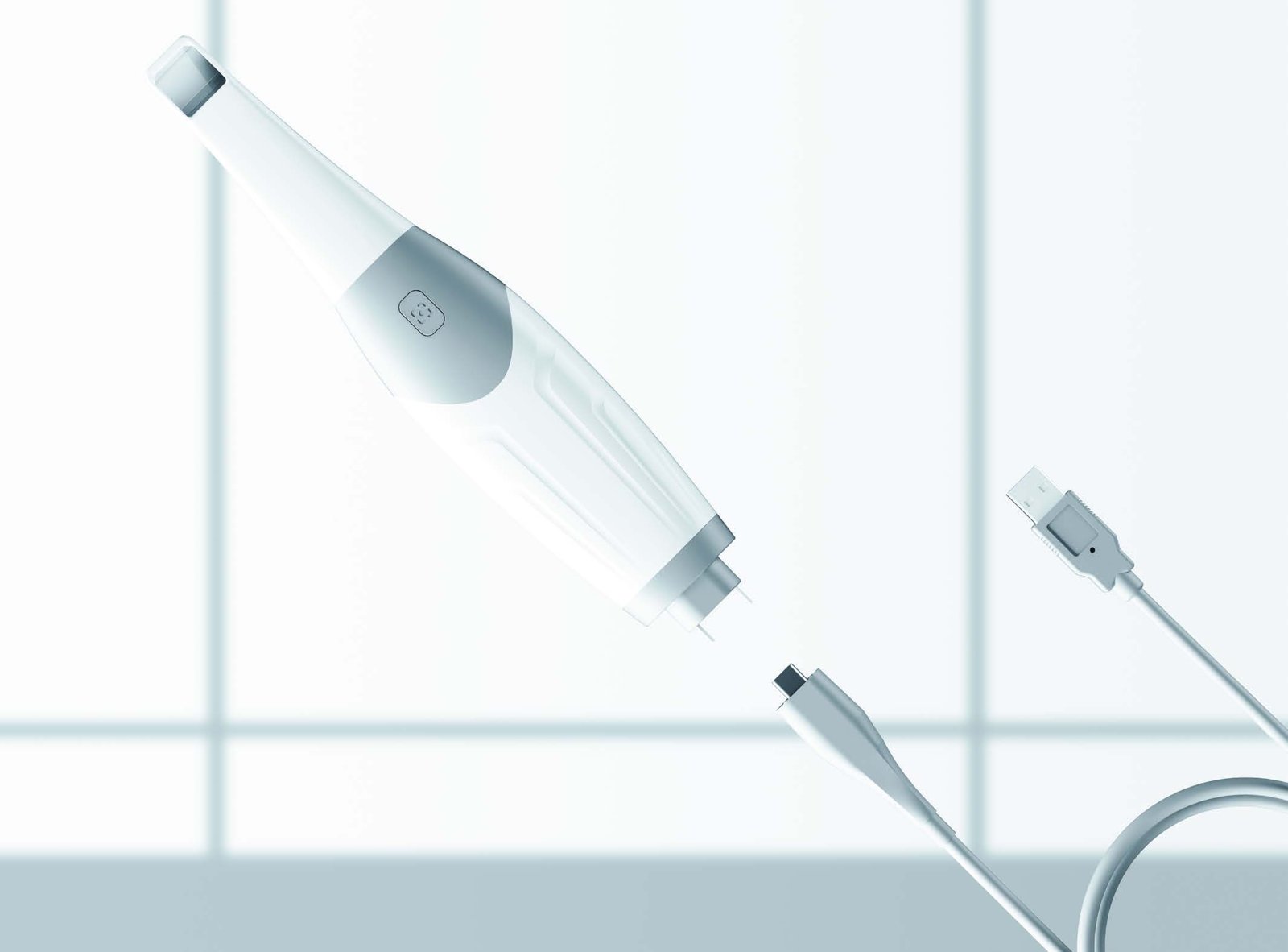

One Cable, Plug and Play: Data and power run through a single USB-C cable; the 180 cm cable detaches from the handpiece and can be replaced in the practice.
-
Ultra-Light: At 175 g, one of the lightest intraoral scanners on the market for comfortable all-day use.
-
20 µm Accuracy: Full-arch accuracy of 20 µm from a latest-generation sensor and proprietary processing software.
-
18 mm Depth of Field: One of the highest on the market, for reliable scans even in complex areas.
-

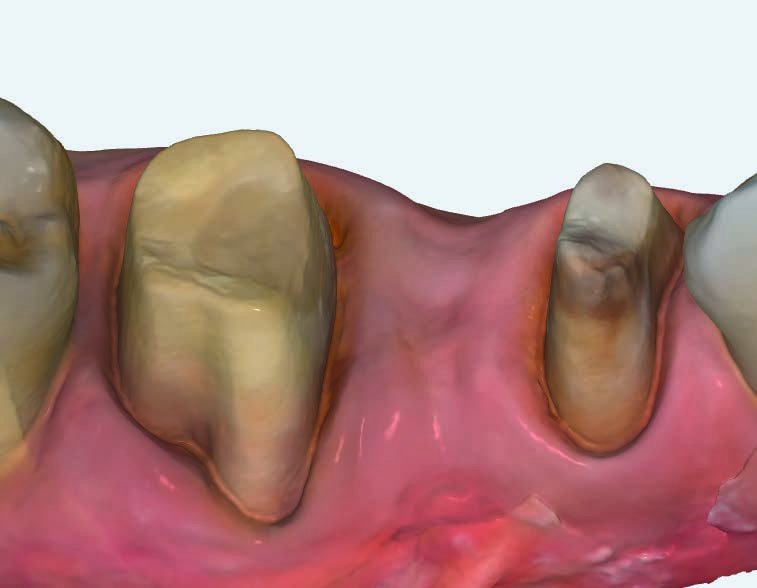

AI-Assisted Acquisition: Ultra-high frame rate camera with adjustable-intensity AI that removes soft tissue, fingers and artefacts in real time.
-
Vivid and Sharp Filters: Realistic colour for patient communication, or sharpened detail for clinical assessment.
-

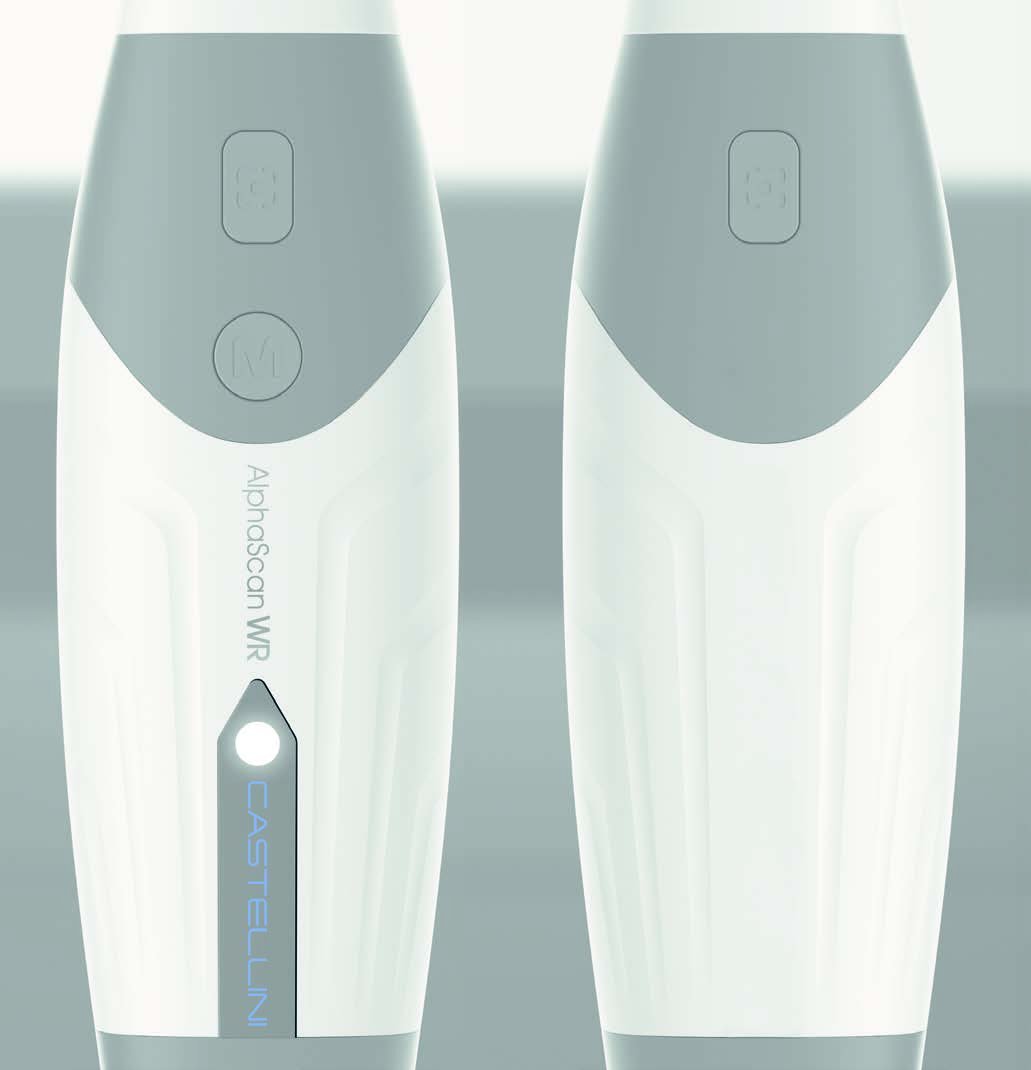

Gyroscope with Dual Scan Button: Control scanning with the same finger even after rotating the scanner, and use the handpiece as a mouse.
-
No Calibration Needed: Internal optics are protected against impact, so no calibration is required.
-
Two Autoclavable Tips: Large and small tips, autoclavable over 60 cycles at 134°C.
-

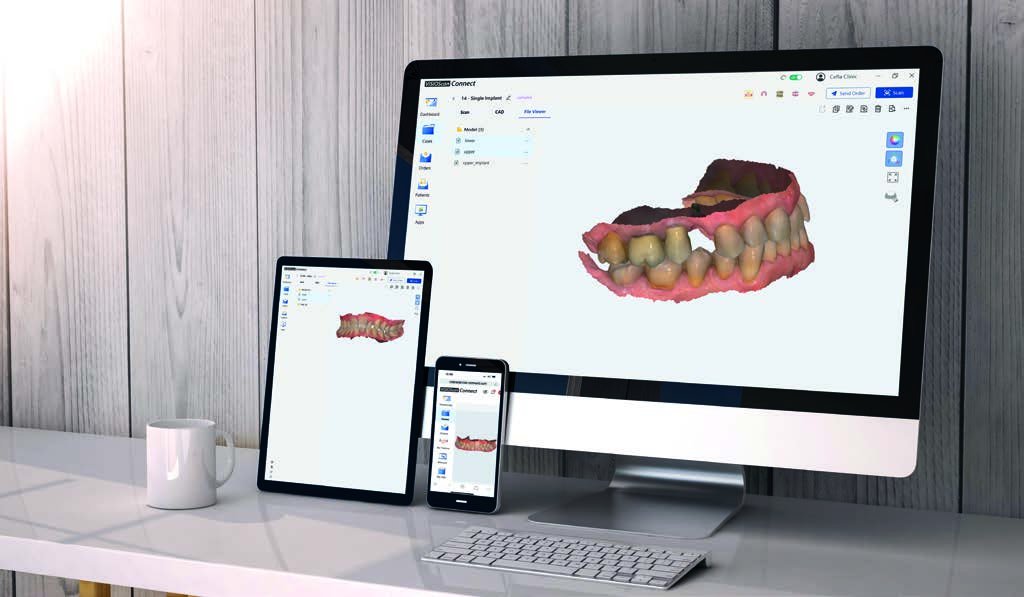

ScanPro and AlphaScan Connect: AI-powered scanning software with measurement, undercut and margin tools; cloud sync and web access from PC, Mac, tablet or phone; integrated App Store.
-
Included Apps: Smile Design, Oral Health Report, Compare, Ortho Simulation S and Model Builder; integrates with exoplan® and exocad Smile Creator® and with CBCT data.
Technical Data:
-
Weight: 175 g
-
Dimensions: 175 x 49 x 39 mm
-
Connectivity: USB-A 3.0 (single cable to USB-C handpiece)
-
Accuracy (full arch): 20.0 µm
-
Acquisition Depth: 18 mm
