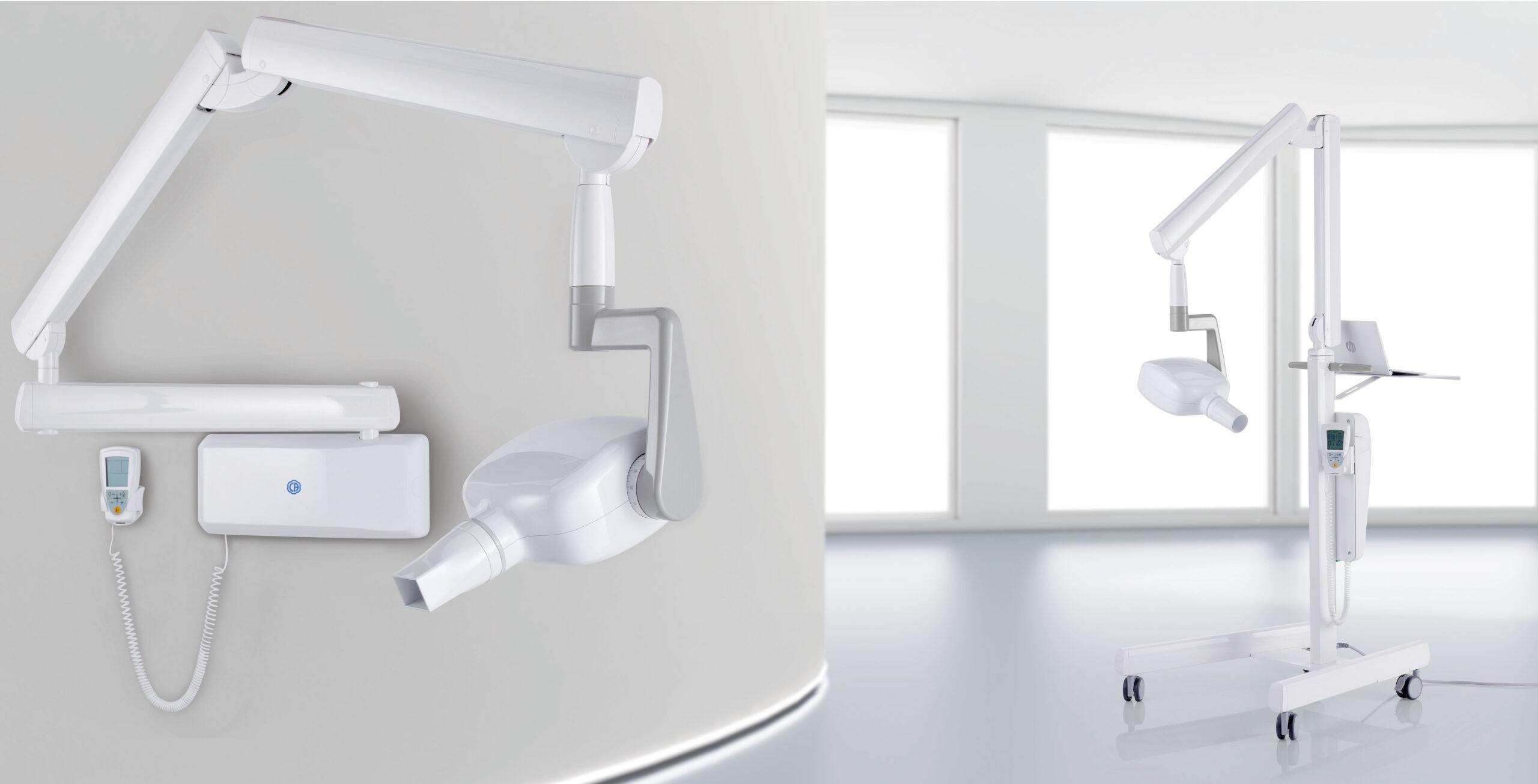

Castellini RX DC X-ray unit, wall-mounted and mobile cart versions

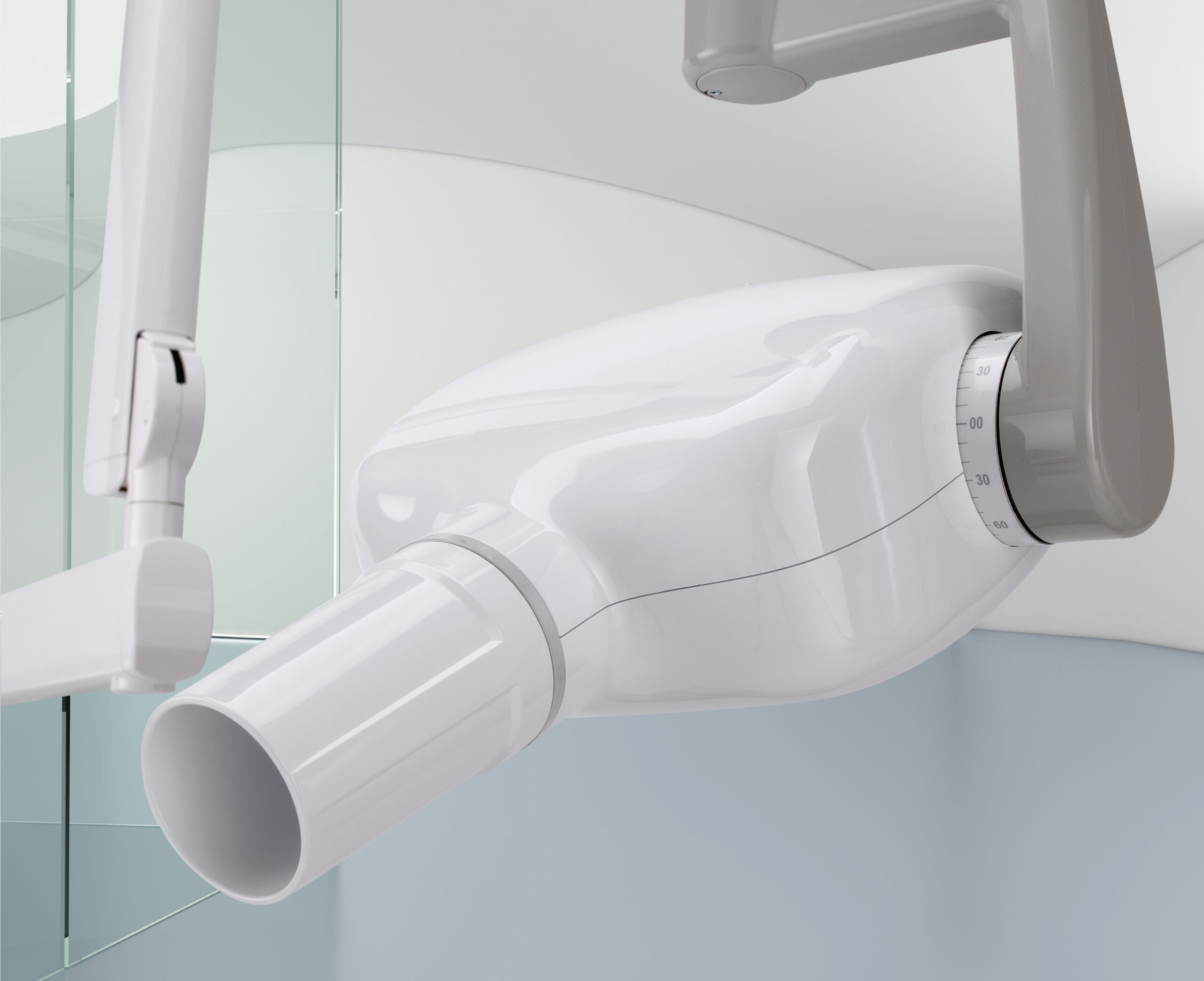

Castellini RX DC X-ray tube head close-up

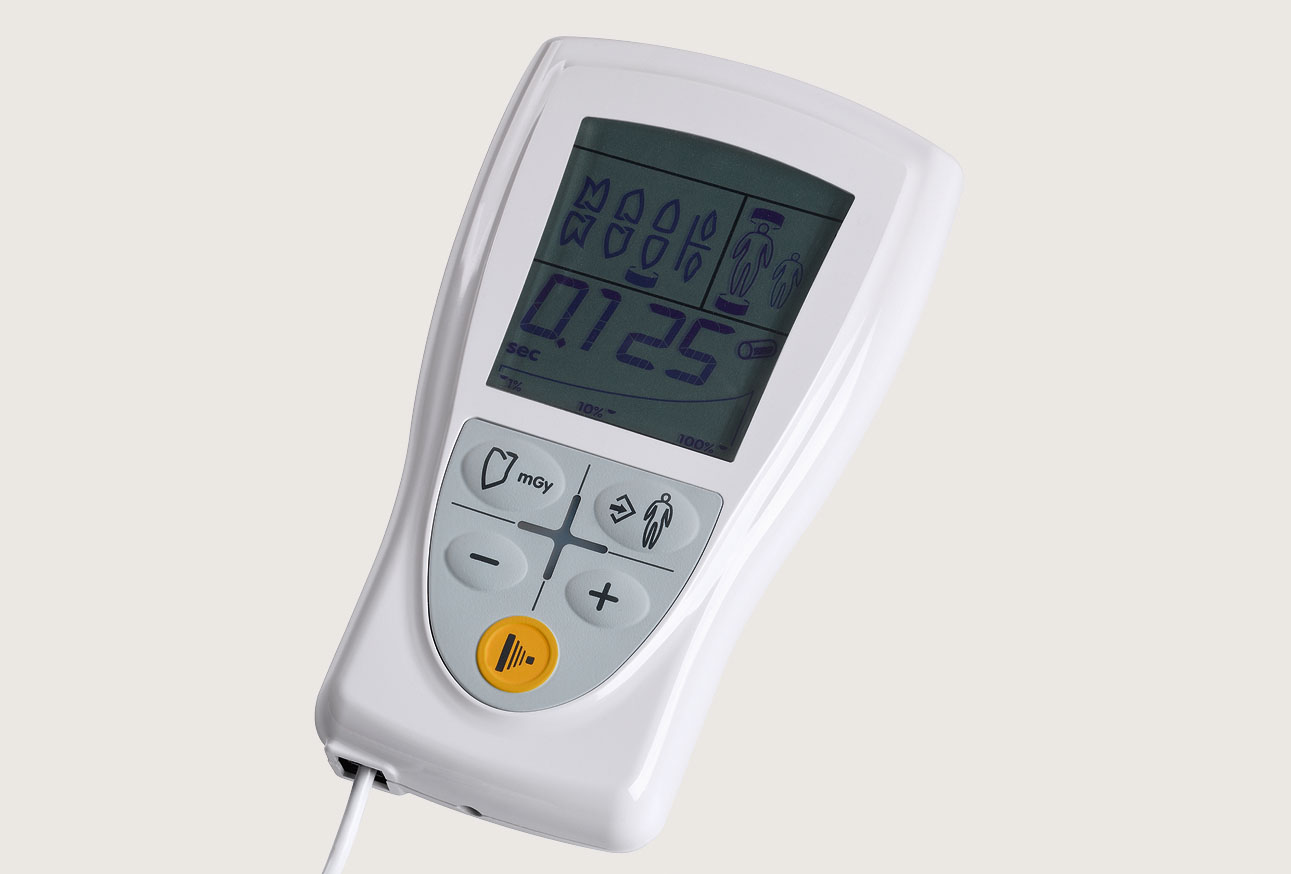

Castellini RX DC handheld exposure controller

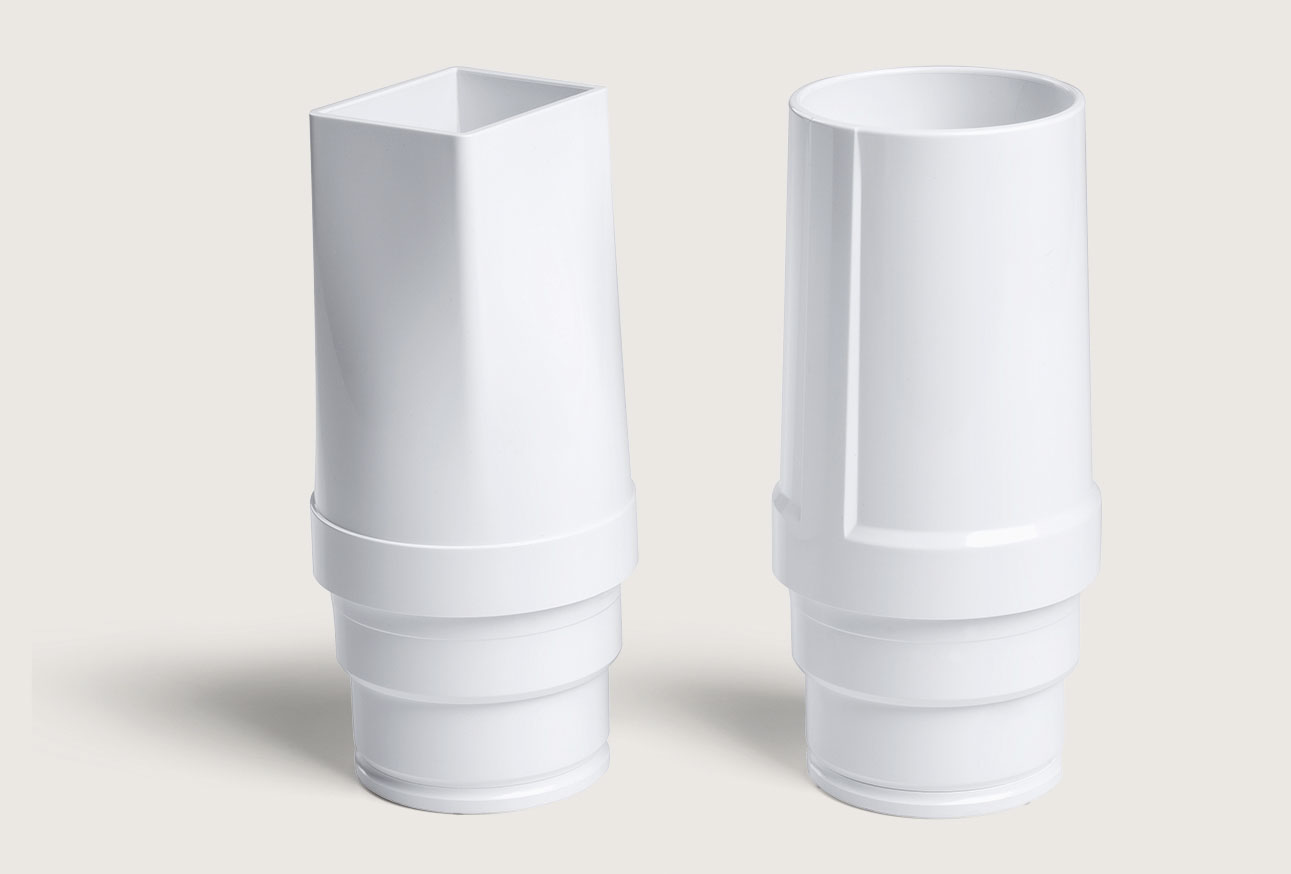

Castellini RX DC rectangular and round collimator cones

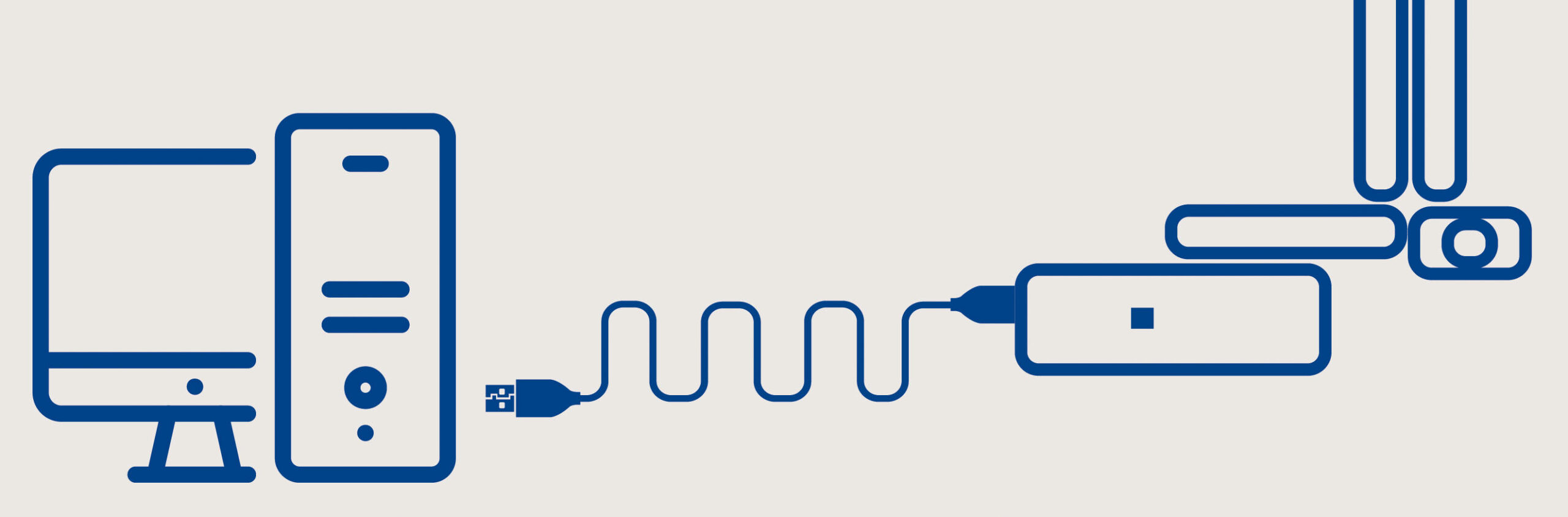

Castellini RX DC PC Connect USB accessory diagram

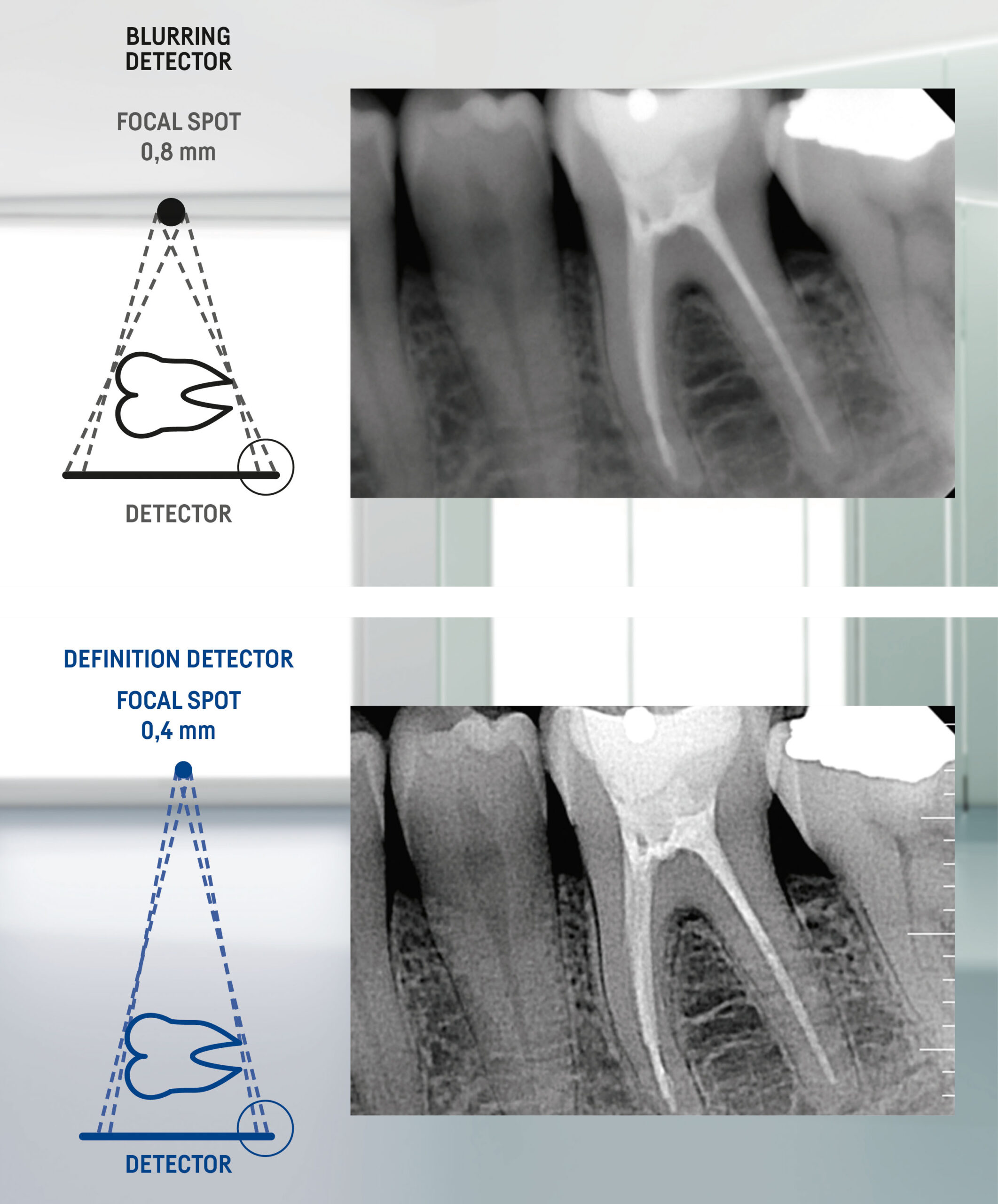

0.4 mm vs 0.8 mm focal spot image sharpness comparison

Castellini RX DC Wireless

Contact us for pricing

The Castellini RX DC intraoral X-ray unit, now with eXTend wireless control. A 0.4 mm focal spot and constant potential generator deliver sharp, high-definition images at low patient dose, with wireless handheld operation for total positioning freedom.

Category: Brand:

Description

Castellini RX DC Wireless

The Castellini RX DC is a versatile, high frequency intraoral X-ray unit, now available with eXTend wireless control for total positioning freedom. Its constant potential (DC) generator and a very small 0.4 mm focal spot combine to produce sharp, high-definition images while keeping patient dose to a minimum.

Key Features:

  • Wireless Control: The eXTend wireless handheld controller removes the need for a wall-mounted control panel, with a single button for ultra-fast exposure and simple program selection.
  • Sharp, High-Definition Images: A 0.4 mm focal spot and 30 cm source-to-skin distance give sharp edges and precise detail while minimising the exposed body surface area.
  • Low Patient Dose: High frequency, constant potential generation reduces exposure times; a 4 mA mode is available to halve X-ray output where appropriate.
  • Sequential Exposure: A fast dynamic duty cycle keeps the tube temperature under control, allowing repeated exposures with no downtime.
  • Flexible Installation: Available wall-mounted (arms in 40, 60 or 90 cm lengths, positionable in 6 directions) or on a mobile cart for use around the practice.
  • PC Connectivity: Works with iCapture and iRYS software for digital image management, DICOM 3.0 connectivity and an exportable X-ray log; the optional RX DC Connect accessory logs dose data straight to PC.

Technical Data:

  • Focal Spot: 0.4 mm (IEC 336)
  • Voltage at X-ray Tube: 60 / 65 / 70 kV
  • Anode Current: 4 / 8 mA
  • Exposure Times: 0.020 – 1.000 seconds, R’10 and R’20 scale
  • Source-Skin Distance: 20 and 30 cm
  • Irradiated Field: Ø 60 mm and Ø 55 mm (round cone)
  • Versions: Standard (wall mounted) or Mobile (portable cart)
  • Power Supply: 50/60 Hz, 115-120 V AC or 230-240 V AC

Additional information

Focal Spot

Control

Source-Skin Distance

,

Arm Length

, ,

Versions

,

Model

Generator Constant potential, microprocessor-controlled
Working frequency 145 – 230 KHz with self-adjustment (typically 175 KHz)
Focal spot 0.4 mm (IEC 336)
Total filtration 2 mm @ 60 kV / 2 mm @ 65 kV / 2 mm @ 70 kV
Anode current 4 / 8 mA
Voltage at X-ray tube 60 / 65 / 70 kV
Exposure times 0.020 – 1.000 seconds, R’10 and R’20 scale
Source-skin distance 20 and 30 cm
Irradiated field Ø 60 mm and Ø 55 mm (with round cone)
Additional collimators 35 x 45 mm (rectangular cone, size 2 sensors); 31 x 41 mm and 22 x 35 mm for size 1 and size 0 sensors
Power supply 50/60 Hz, 115-120 V AC ±10% or 230-240 V AC ±10%
Duty cycle Continuous operation with self-adjustment up to 1s/90s total
Arms (Standard version) 40 cm, 60 cm or 90 cm
Max arm extension 230 cm from wall
Versions Standard (wall mounted) or Mobile (portable cart)
Control eXTend wireless handheld controller
Dose delivered Shown on handheld device; digital archive on PC via iRYS, automated with optional PC Connect accessory
Software iCapture acquisition, iRYS image management (DICOM 3.0, TWAIN, VDDS)
