Description

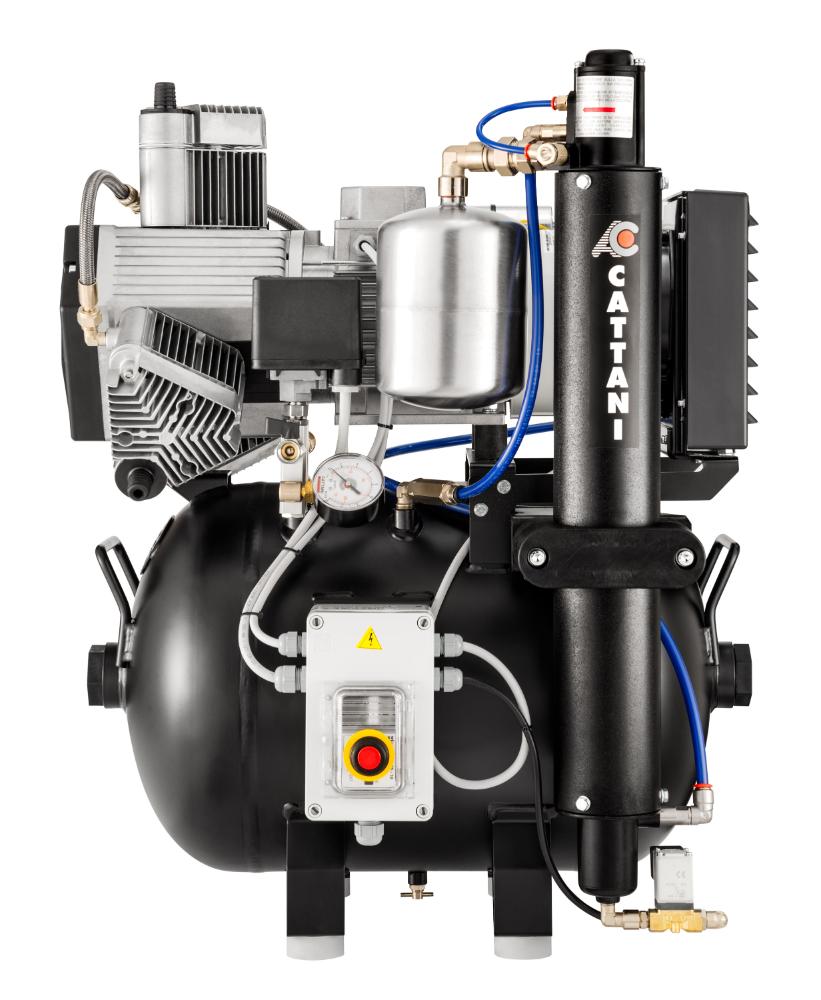

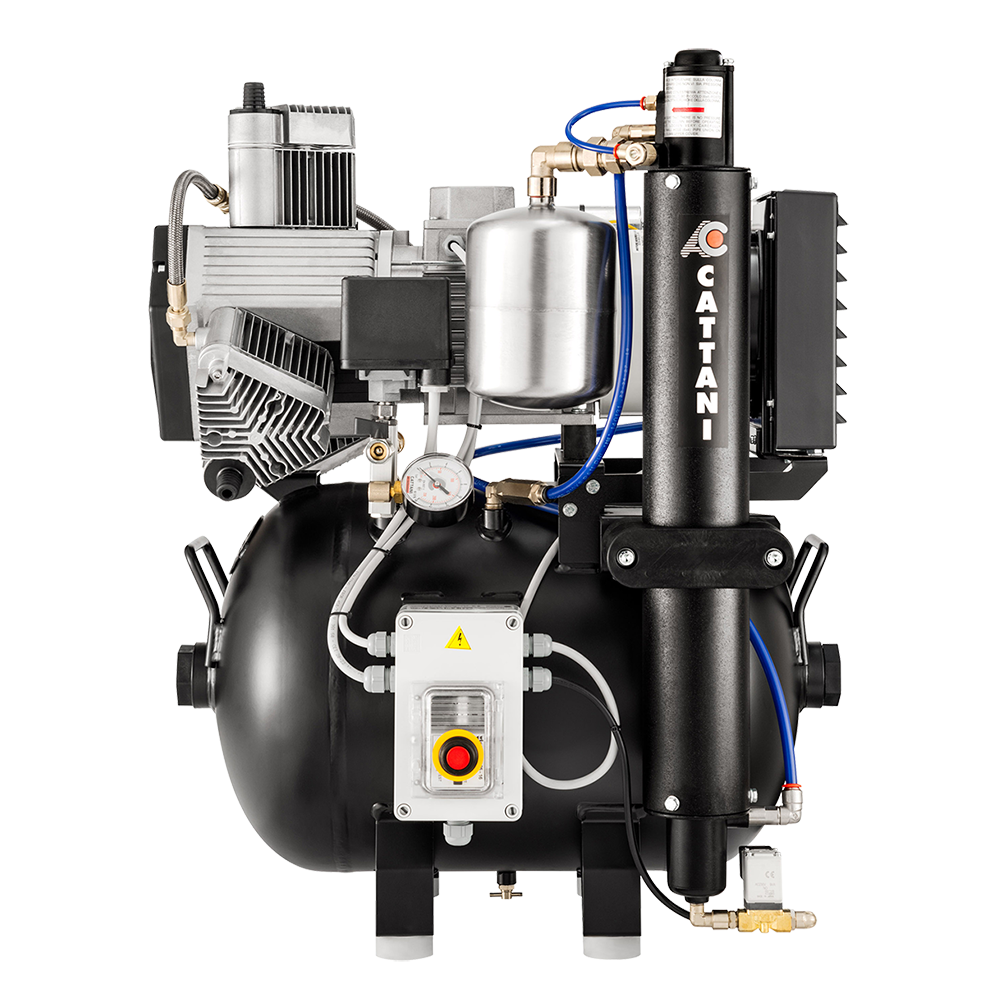

Cattani AC300 Oil-less Compressor
The Cattani AC300 is a 3 cylinder oil-less compressor for up to 4 surgeries running simultaneously. Complete with a drying system and set of filters, it supplies clean, dry compressed air of extremely high quality and purity, protecting patient and staff health and extending the life of your dental equipment and handpieces. Cattani compressors have an outstanding reputation for reliability and durability, and when correctly specified deliver at least 50 litres/minute per chair at 5 bar with all chairs running.
Key Features:
-
Capacity: 3 cylinder for up to 4 surgeries running simultaneously
-
Clean, Dry Air: Supplied complete with a desiccant drying system rated for continuous flow and a set of filters, giving clean, dry, high-purity compressed air
-
Lifetime Pistons: Special coated pistons that need no replacement during the life of the compressor
-
BioCote® Receiver: Air receiver coated with BioCote® silver ion technology for permanent antimicrobial protection against bacteria and mould
-
SMC Pressure Switch: High quality SMC pressure switch fitted as standard
-
Filtration Upgrade: Filters can be upgraded to HEPA H14 for an even higher level of air purification
-

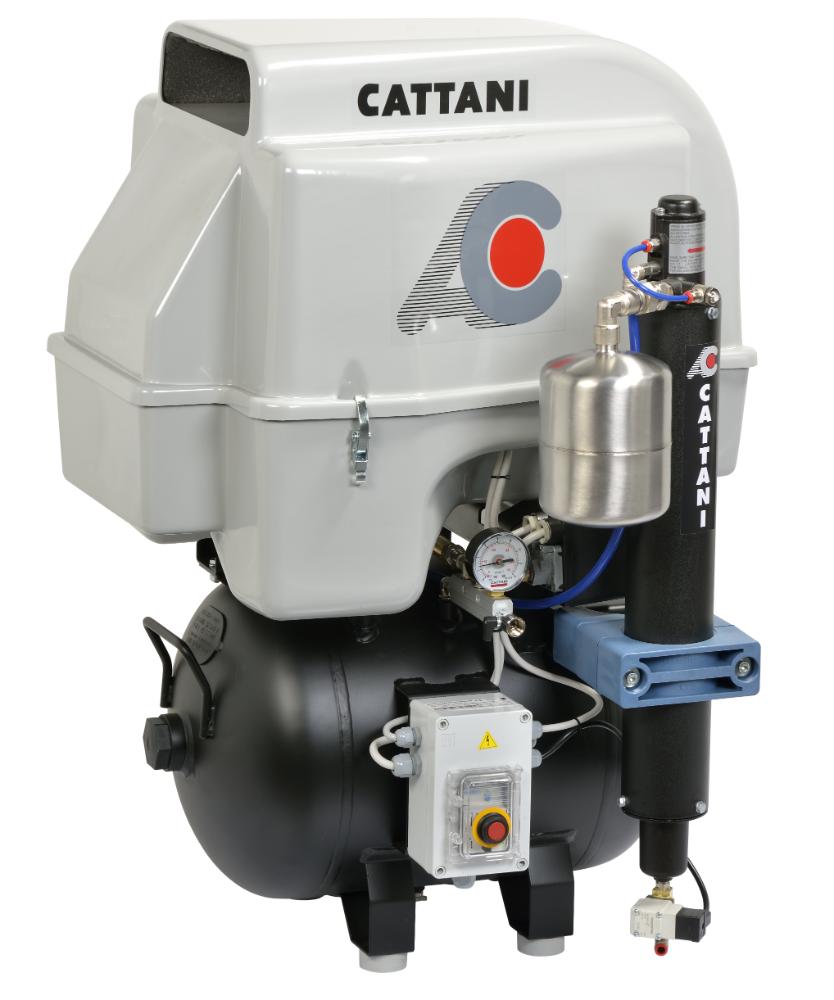

Noise Reduction: Available as the AC300Q with a factory-fitted sound-reducing hood, or can be fitted into a sound-reducing cabinet (product code 010800)
-
Hand Built: Hand built and quality checked at every stage; conforms to ISO 22052
-
5-Year Warranty: 5-year warranty as standard, extendable to 7 years when the additional 2-year warranty is purchased with the unit (subject to servicing T&Cs)
Technical Data:
-
Model: AC300 (with dryer) / AC300Q (with dryer and sound-reducing hood)
-
Product Code: AC300: H13330; AC300Q: H13350
-
Surgeries: Up to 4 surgeries running simultaneously
-
Cylinders: 3 cylinder
-
Air Produced: 238 Nl/min @ 5 bar
-
Tank Capacity: 45 litres
-
Power Supply: 50 Hz, 1.5 kW, 10.2 A
-
Noise Level: 73.6 dB(A) (68 dB(A) with hood)
-
Net Weight: 65 kg (80 kg with hood)
-
Dimensions: W620 x D520 x H750 mm (W720 x D600 x H970 mm with hood)
-
Warranty: 5 years (7 years with the optional 2-year extension)
Sound pressure levels tested to ISO 3746. Cattani can also advise on pipe networks and plant rooms, and supply bespoke Blok Jet systems for large clinics.
