Description

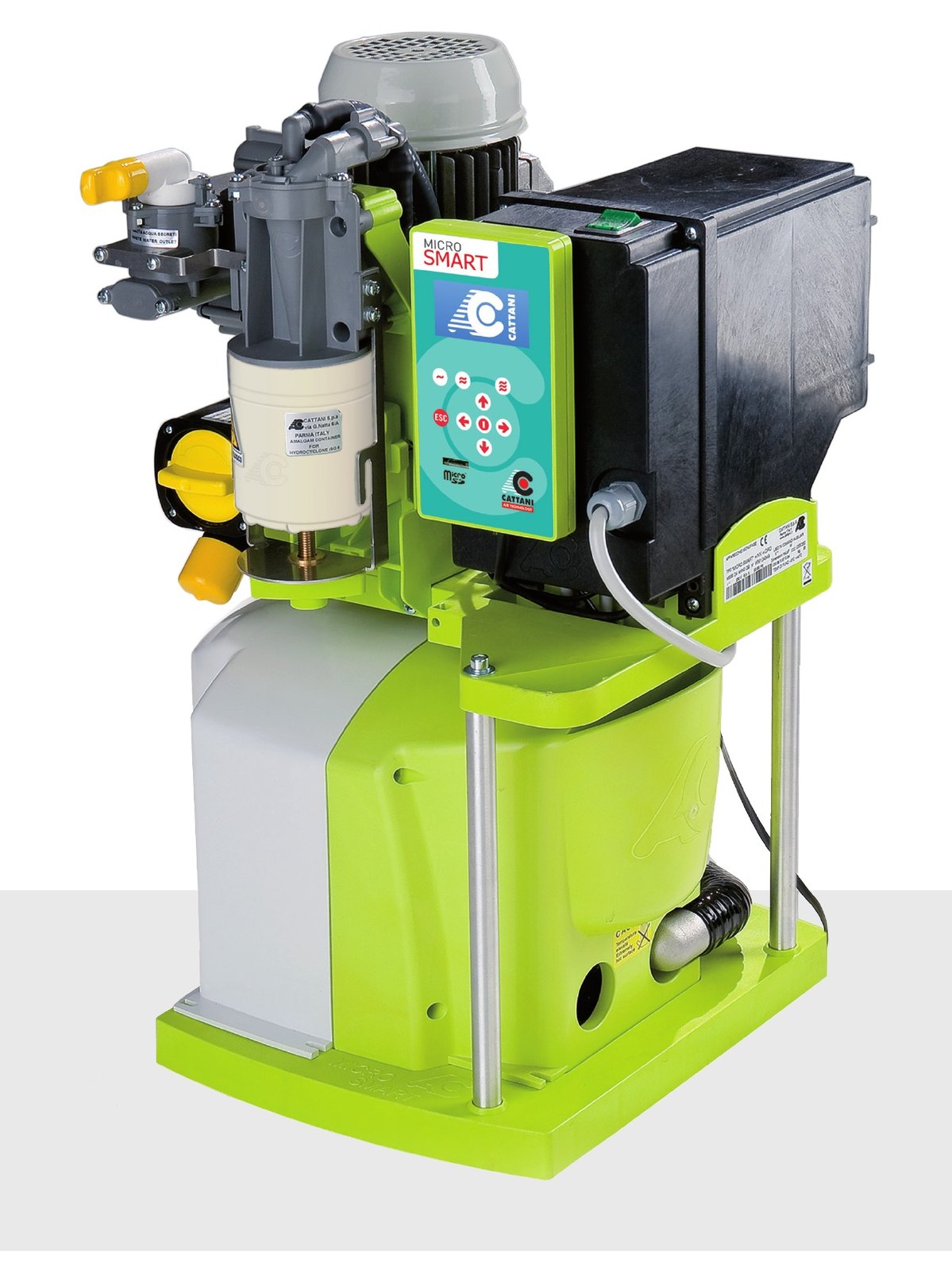

Cattani Micro Smart
The Cattani Micro Smart is a flexible, reliable and powerful variable speed suction system for a single surgery. Variable Speed Drive (VSD) technology matches motor speed to demand, cutting electricity use and extending motor life, while three preset vacuum levels let you set the right suction for each procedure at the touch of a button.
Key Features:
-
Preset Vacuum Levels: 70, 100 and 210 mbar presets, reprogrammable by the operator and adjustable remotely over Wi-Fi. Cattani recommends 100 mbar for the saliva ejector, 160 mbar for the HVE and 210 mbar for surgical tips.
-
Variable Speed Drive: Inverter technology reduces motor speed when demand drops, saving energy; the 7 kg motor outperforms fixed-speed motors of double its weight.
-
Active Self-Protection: The inverter control adapts to extreme conditions: it reduces vacuum to cool down in high temperatures, handles sudden waves of liquid without overflowing, and protects the electronics against voltage changes, so the unit keeps running where fixed-speed aspirators would fail.
-

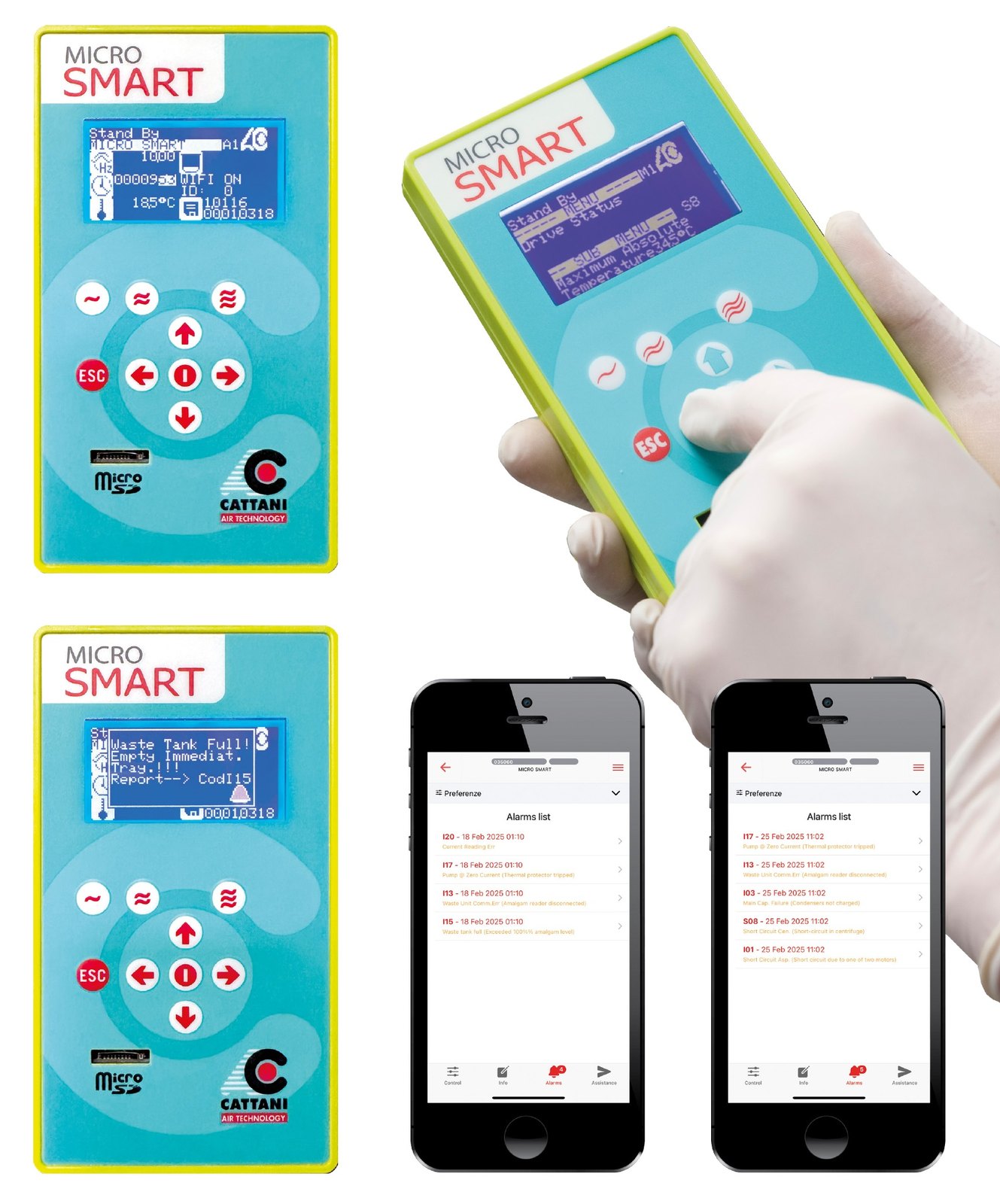

Informative Display: Shows vacuum level, machine temperature, amalgam level, maintenance, current absorption and running hours, with an error log for precise fault diagnosis.
-
Wi-Fi and SmartApp: Registration on the Cattani SmartApp at installation lets an engineer check the unit remotely, lets you check the vacuum level remotely, and alerts you to maintenance such as the amalgam pot level.
-
Warranty: 3-year warranty, extendable to 5 years if purchased with the unit (subject to servicing terms and SmartApp registration).
-
Eco-Sustainable Design: Uses less material to build and 30-50% less electricity than conventional units.
Technical Data:
-
Number of surgeries: 1
-
Output power: 1.12 kW, 8 A, 230 V 50 Hz
-
Max. flow: 900 l/min
-
Max. vacuum: 210 mbar (continuous service)
-
Preset vacuum levels: 70, 100 and 210 mbar (programmable)
-
Noise level: 64-71 dB(A)
Full specifications are in the Specifications tab and brochure.
