Cattani Turbo Smart

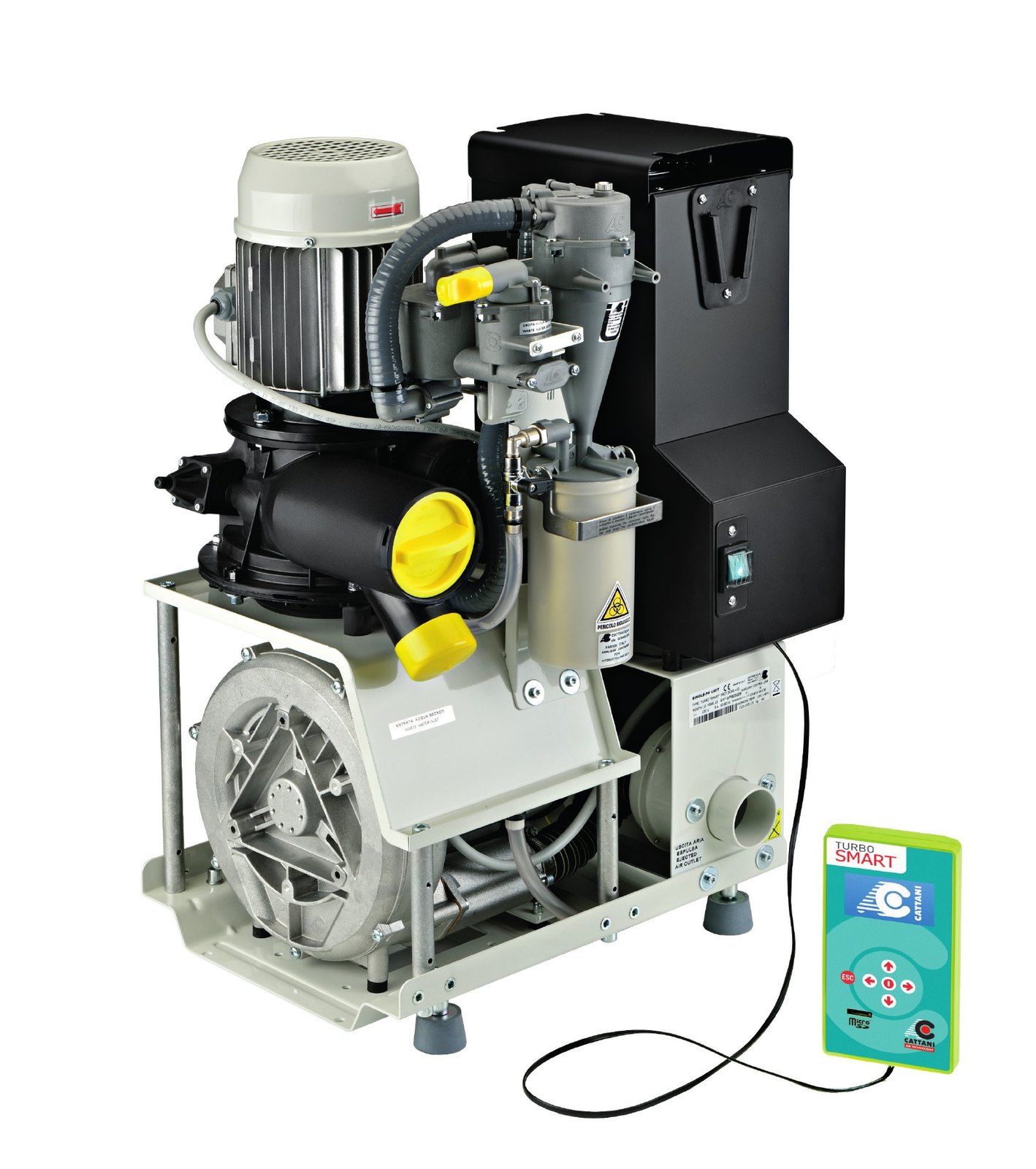

The Cattani Turbo Smart is a powerful variable speed suction system for conservation and surgical work, delivering high airflow and high vacuum. Supplied for two surgeries and upgradable to four, its programmable vacuum automatically responds to demand from the surgeries, and its inverter means electricity use is proportional to use.
Key Features:
-
Upgradable: Model A serves 2 surgeries; upgrade to model B for up to 4 surgeries simply by entering a password, before or any time after installation. Units can also be installed in parallel without extra peripherals.
-

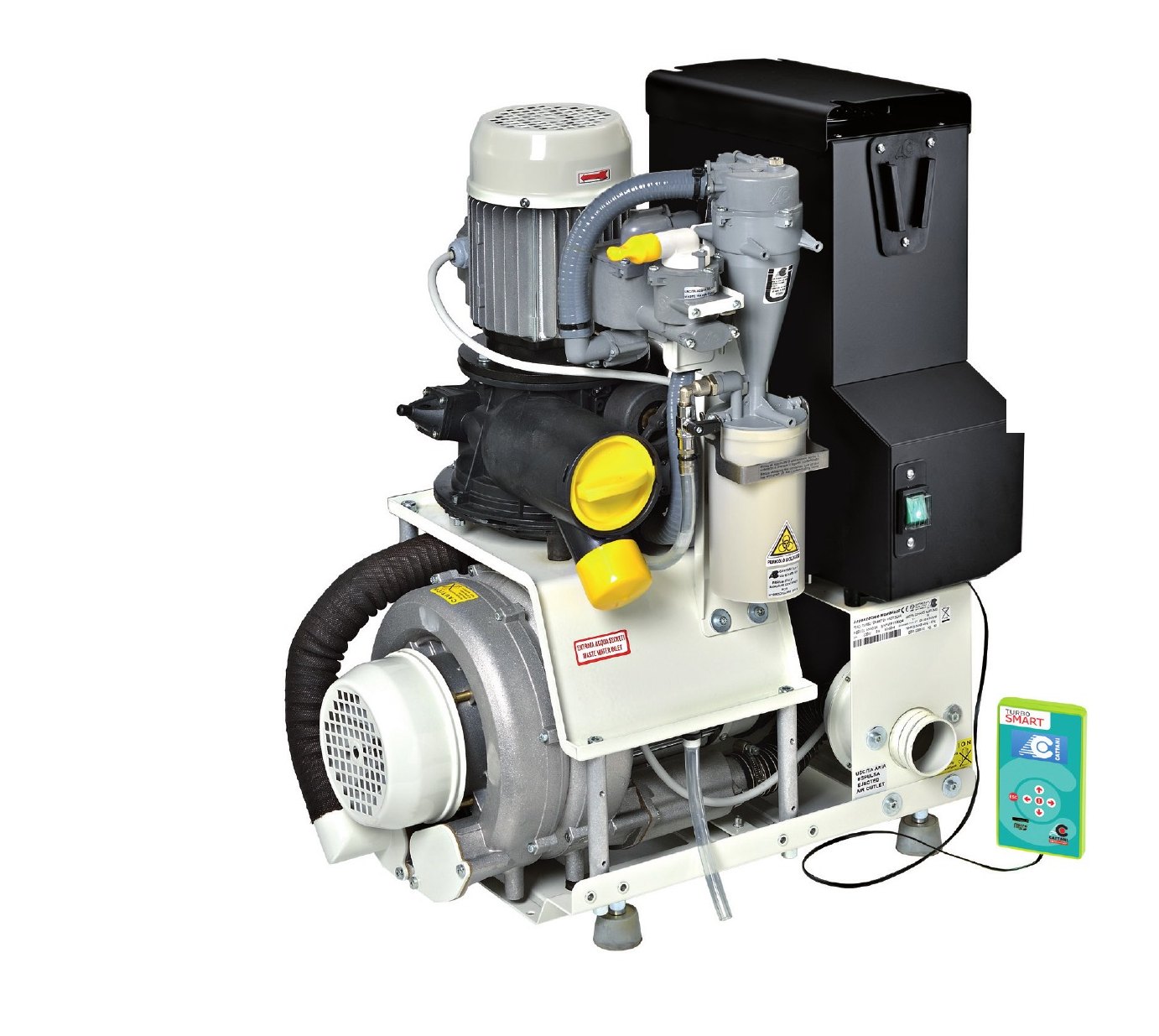

Turbo Smart 2V: Twin-turbine Uni Jet 75 2V motor producing up to 280 mbar (settable 40-280 mbar) for up to 4 surgeries: an ideal direct replacement for any wet-ring system, and suited to implant and surgical work or long or undersized pipe runs. Available in B version only.
-
Active Self-Protection: The inverter control adapts to extreme conditions: it reduces vacuum to cool down in high temperatures, handles sudden waves of liquid without overflowing, and protects the electronics against voltage changes, so the unit keeps running where fixed-speed aspirators would fail.
-
Informative Display: Shows vacuum level, machine temperature, amalgam level, maintenance, current absorption and running hours, with an error log for precise fault diagnosis.
-
Wi-Fi and SmartApp: Registration on the Cattani SmartApp at installation lets an engineer check the unit remotely, lets you check the vacuum level remotely, and alerts you to maintenance such as the amalgam pot level.
-
Warranty: 3-year warranty, extendable to 5 years if purchased with the unit (subject to servicing terms and SmartApp registration).
Technical Data:
-
Versions: Turbo Smart A (2 surgeries), Turbo Smart B (up to 4 surgeries), Turbo Smart 2V (up to 4 surgeries)
-
Output power: Turbo Smart: 1.5 kW, 6.5 A, 230 V 50 Hz; 2V: 2 kW, 9 A, 230 V 50 Hz
-
Max. flow: Turbo Smart: 1400-1700 l/min; 2V: 1600 l/min
-
Max. vacuum (continuous): Turbo Smart: 210 mbar; 2V: 280 mbar
-
Noise level: Turbo Smart: 68-69 dB(A); 2V: 70 dB(A)
-
Dimensions (W x D x H): Turbo Smart: 390 x 350 x 630 mm; 2V: 540 x 400 x 650 mm
Full specifications are in the Specifications tab and brochure.
