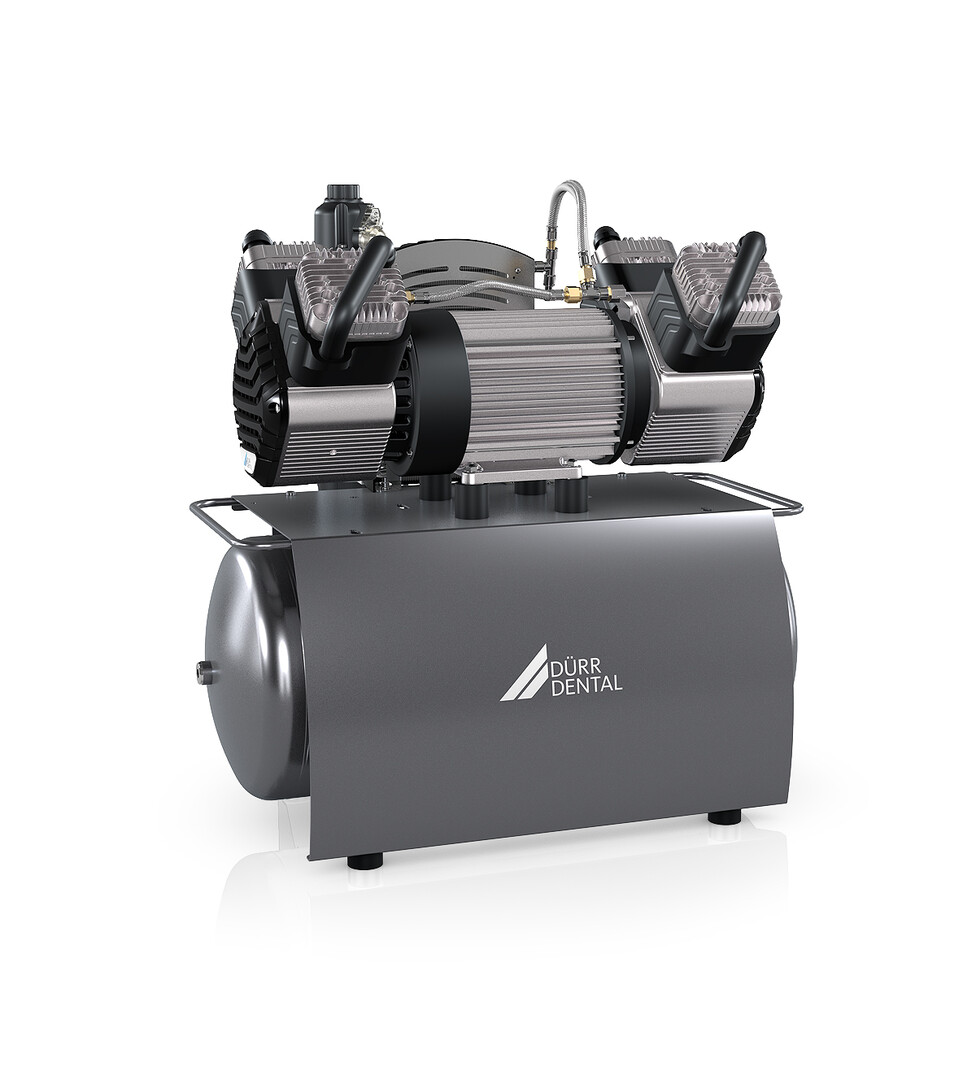

Dürr Dental Quattro Compressor
The powerful 4-cylinder compressor with a 50-litre tank for up to 4 users. Silver Airline compressors from Dürr Dental supply oil-free, dry and hygienic compressed air to ISO 22052, with state-of-the-art membrane drying and a standard ULPA U16 bacteria filter.
Key Features:
-
Capacity: 50-litre tank for 4 users
-
Hygienic Oil-free Air: Oil-free, dry, hygienic compressed air meeting ISO 22052; certified Class IIa medical device under MDR (EU 2017/745)
-
Membrane Drying: Membrane drying unit with 1,200 internally coated hollow fibres gives a constant supply of dry air with no regeneration interruptions
-
ULPA U16 Bacteria Filter: Standard ULPA U16 bacteria filter as the final stage of a three-stage filter system (intake, coalescing and bacteria filters)
-
Made in Germany: Manufactured almost exclusively in Germany under strict ISO-certified quality control
-
Warranty: Up to 3-year warranty
-
Accessories: Soundproof cabinets (small and large), pressure reducer and replacement filters, also available as a set
Technical Data:
-
Model: Quattro
-
Voltage: 400 V (3~), 50/60 Hz
-
Users: Up to 4
-
Tank Capacity: 50 litres
-
Delivery at 5 bar: 258/293 l/min
-
Pressure Range: 6-7.8 bar
-
Noise Level: 69 dB(A); 53 dB(A) in cabinet
-
Dimensions (H x W x D): 76 x 74 x 52 cm
-
Weight: 85 kg
Delivery shown without dry air, as 50/60 Hz values. Max. pressure 9.5 bar. Noise levels are average values at 5 bar and 50 Hz.
