Description

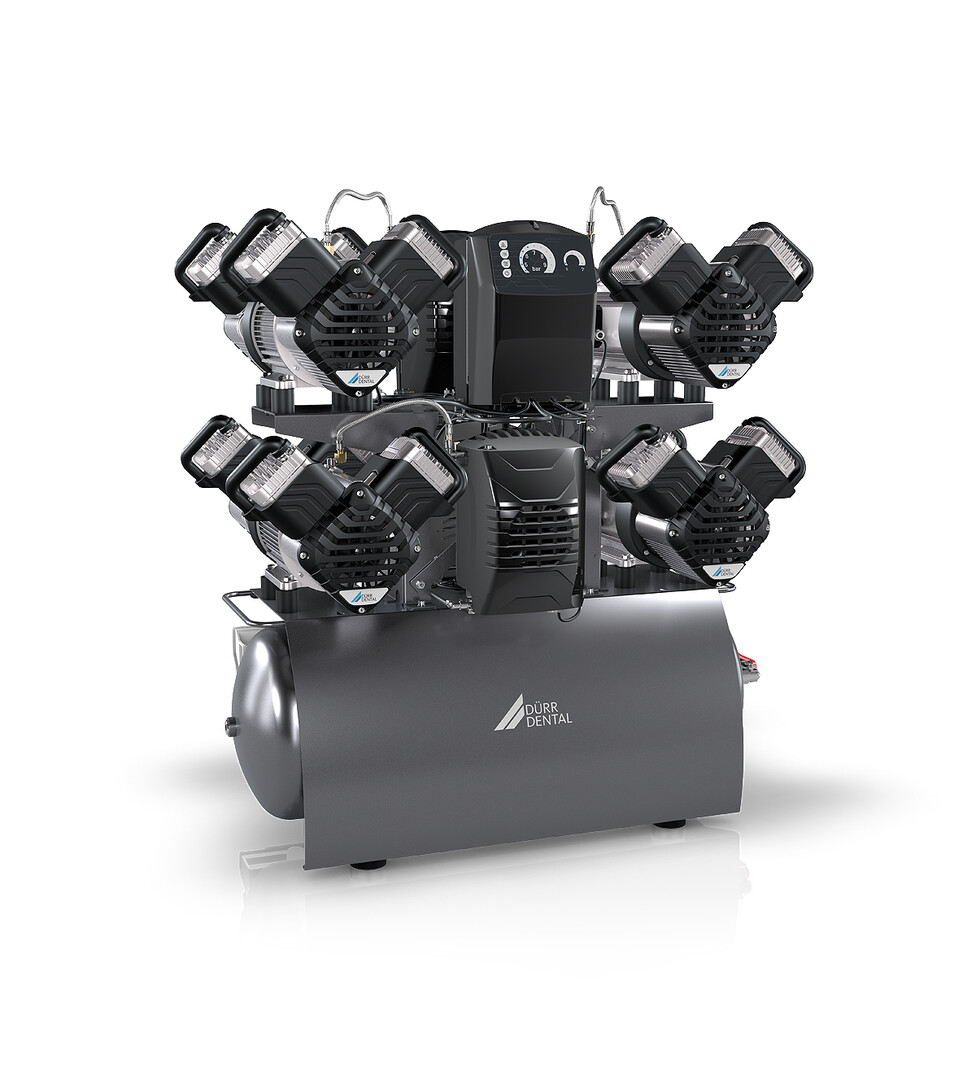

Dürr Dental Quattro P 20 Compressor
Maximum performance with a tiny footprint for dental laboratories and large surgeries, supplying up to 16 users. A redundant system for the highest reliability. Silver Airline compressors from Dürr Dental supply oil-free, dry and hygienic compressed air to ISO 22052, with state-of-the-art membrane drying and a standard ULPA U16 bacteria filter.
Key Features:
-
Capacity: 90-litre tank for 16 users
-
Tandem Principle: Modular expansion by adding a unit, and two Tandem compressors can run in parallel in one compressed air network
-

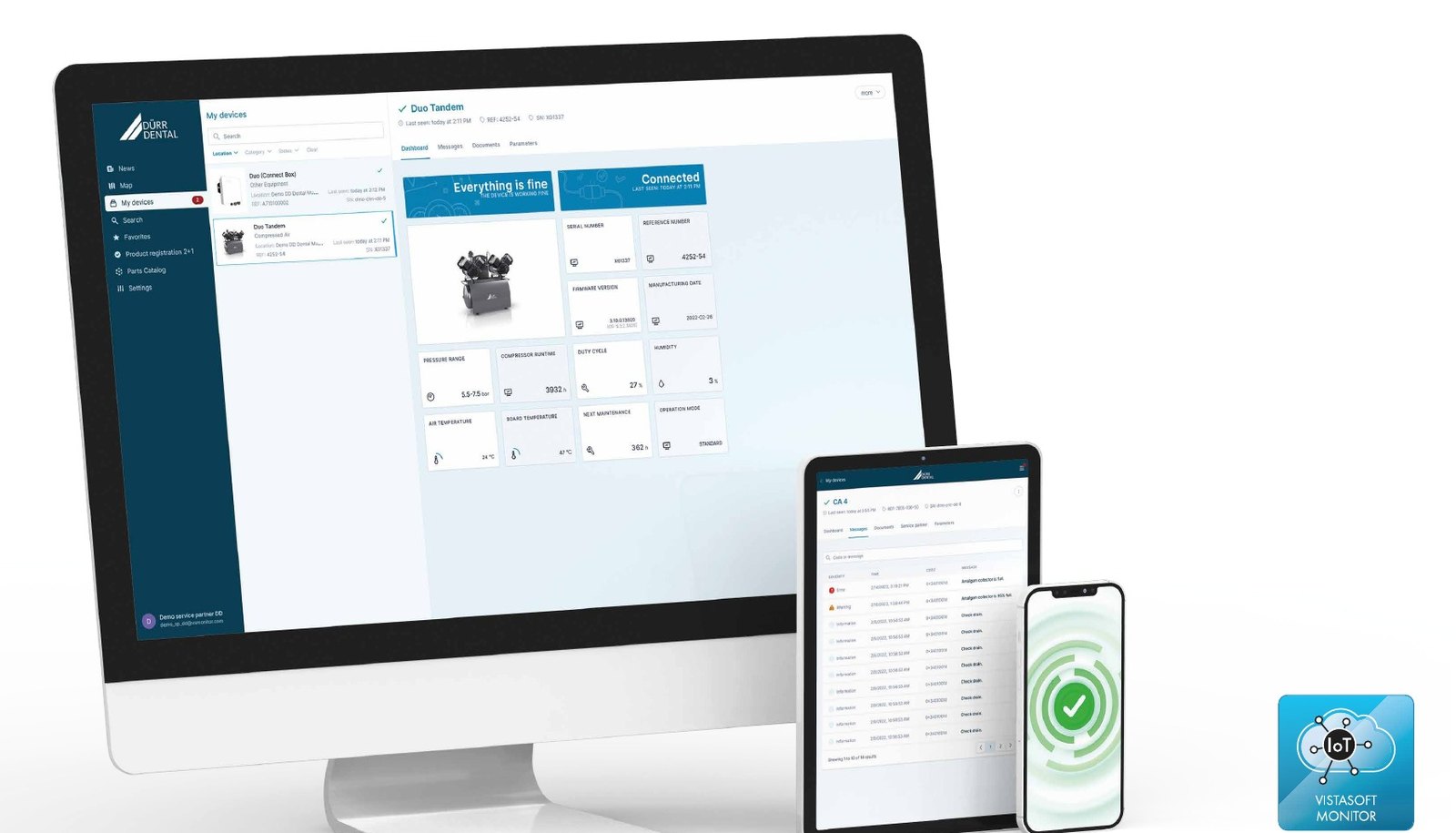

VistaSoft Monitor: Electronic control with network connection for status overview, maintenance reminders, fault diagnosis and remote maintenance
-
Hygienic Oil-free Air: Oil-free, dry, hygienic compressed air meeting ISO 22052; certified Class IIa medical device under MDR (EU 2017/745)
-
Membrane Drying: Membrane drying unit with 1,200 internally coated hollow fibres gives a constant supply of dry air with no regeneration interruptions
-
ULPA U16 Bacteria Filter: Standard ULPA U16 bacteria filter as the final stage of a three-stage filter system (intake, coalescing and bacteria filters)
-
Made in Germany: Manufactured almost exclusively in Germany under strict ISO-certified quality control
-
Warranty: Up to 3-year warranty
-
Accessories: Soundproof cabinets (small and large), pressure reducer and replacement filters, also available as a set
Technical Data:
-
Model: Quattro P 20
-
Voltage: 400 V (3~), 50/60 Hz
-
Users: Up to 16
-
Tank Capacity: 90 litres
-
Delivery at 5 bar: 1032/1172 l/min
-
Pressure Range: 5.5-7.5 bar
-
Noise Level: 75 dB(A)
-
Dimensions (H x W x D): 114 x 115 x 77 cm
-
Weight: 300 kg
Delivery shown without dry air, as 50/60 Hz values. Max. pressure 9.5 bar. Noise levels are average values at 5 bar and 50 Hz.
