Description

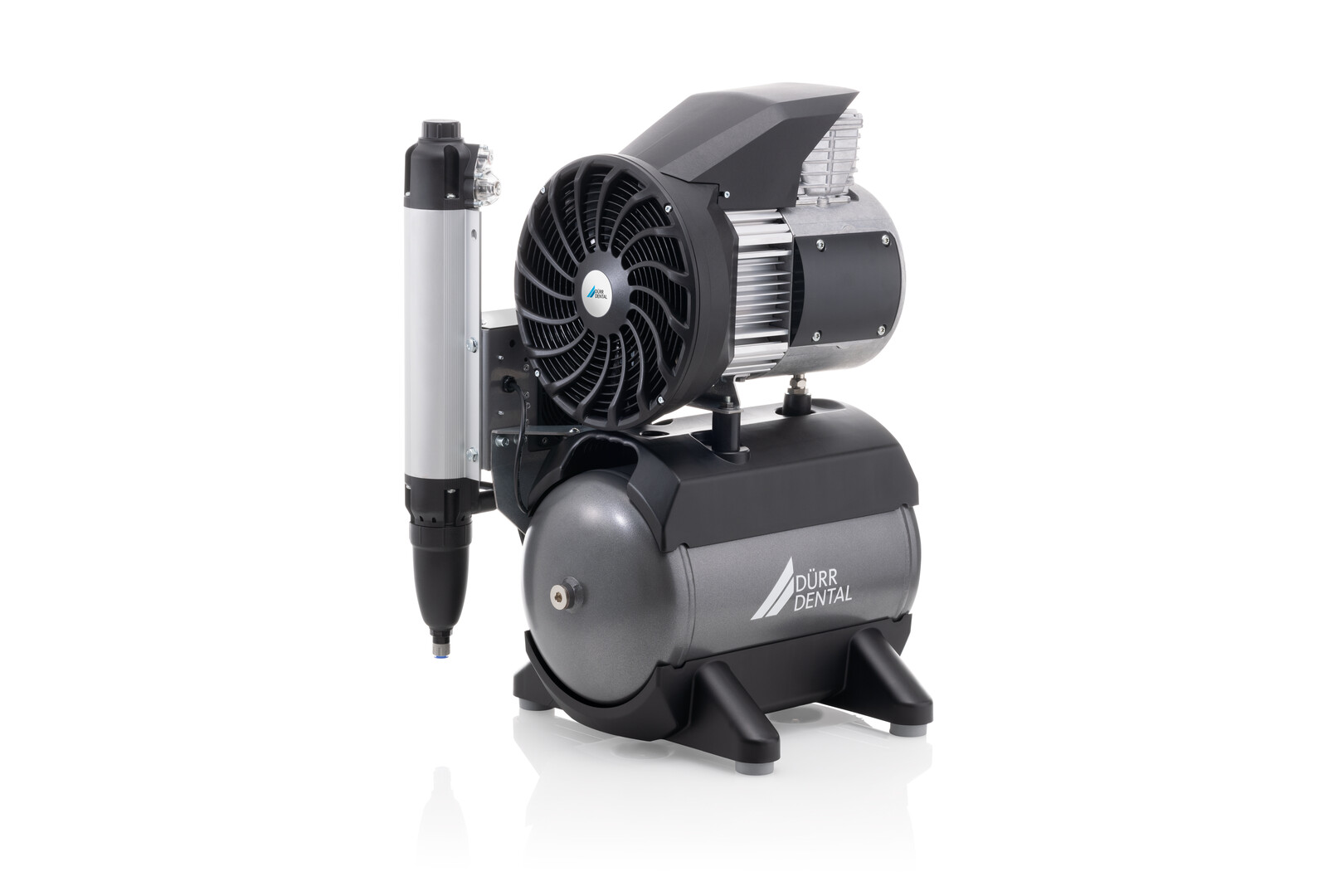

Dürr Dental Tornado 1 Compressor
The classic, exceptionally quiet compressor with a 1-cylinder unit and a 20-litre tank for one user. In tests by the Fraunhofer Institute for Building Physics IBP, the Tornado 1 was the quietest compressor in the entire series. Dürr Dental compressors supply oil-free, dry, hygienic compressed air to ISO 22052, and the Tornado range combines very quiet running with high output and reduced energy consumption.
Key Features:
-
Capacity: 1-cylinder unit with 20-litre tank for 1 user
-
Super Silent: One of the quietest compressors in dentistry; the aerodynamic noise reduction hood keeps the unit at no more than 54 dB(A) in use (hood models)
-
Membrane Drying Unit: Patented Dürr Dental membrane dryer with 1,200 internally coated hollow fibres gives constantly dry air with no regeneration interruptions and is maintenance free apart from an annual filter change
-
Hygienic Oil-free Air: Oil-free, dry, hygienic compressed air to ISO 22052; certified Class IIa medical device under MDR (EU 2017/745)
-
Multi-stage Filtration: Air intake filter, coalescence filter and ULPA U16 bacteria filter (retrofittable)
-
Robust Monoblock: All important functions in a multi-functional monoblock cylinder with closed crankcase and central intake filter for long, reliable service
-
Energy Efficient: Reduced energy consumption lowers practice running costs
-
Options: Automatic condensate drain, exhaust air system, soundproof cabinet (small), pressure reducer and replacement filter sets
Technical Data:
-
Model: Tornado 1
-
Users: 1
-
Voltage: 230 V (1~), 50/60 Hz
-
Cylinders: 1
-
Flow Rate: 67/77 l/min at 5 bar (60/70 l/min with Membrane Drying Unit)
-
Tank Capacity: 20 litres
-
Pressure Range: 6-7.8 bar (optional pressure reducer available)
-
Noise Level: 64 dB(A); 58/60 dB(A) with hood; 49/51 dB(A) in cabinet
-
Dimensions (H x W x D): 66 x 48 x 41 cm; 65 x 49 x 47 cm with Membrane Drying Unit; 84 x 63 x 53 cm with hood; 84 x 63 x 60 cm with hood and Membrane Drying Unit
-
Weight: 31 kg; 35 kg with Membrane Drying Unit; 44 kg with hood; 49 kg with hood and Membrane Drying Unit
Flow rates and noise levels shown as 50/60 Hz values. Cabinet and pressure reducer optionally available.
