Description

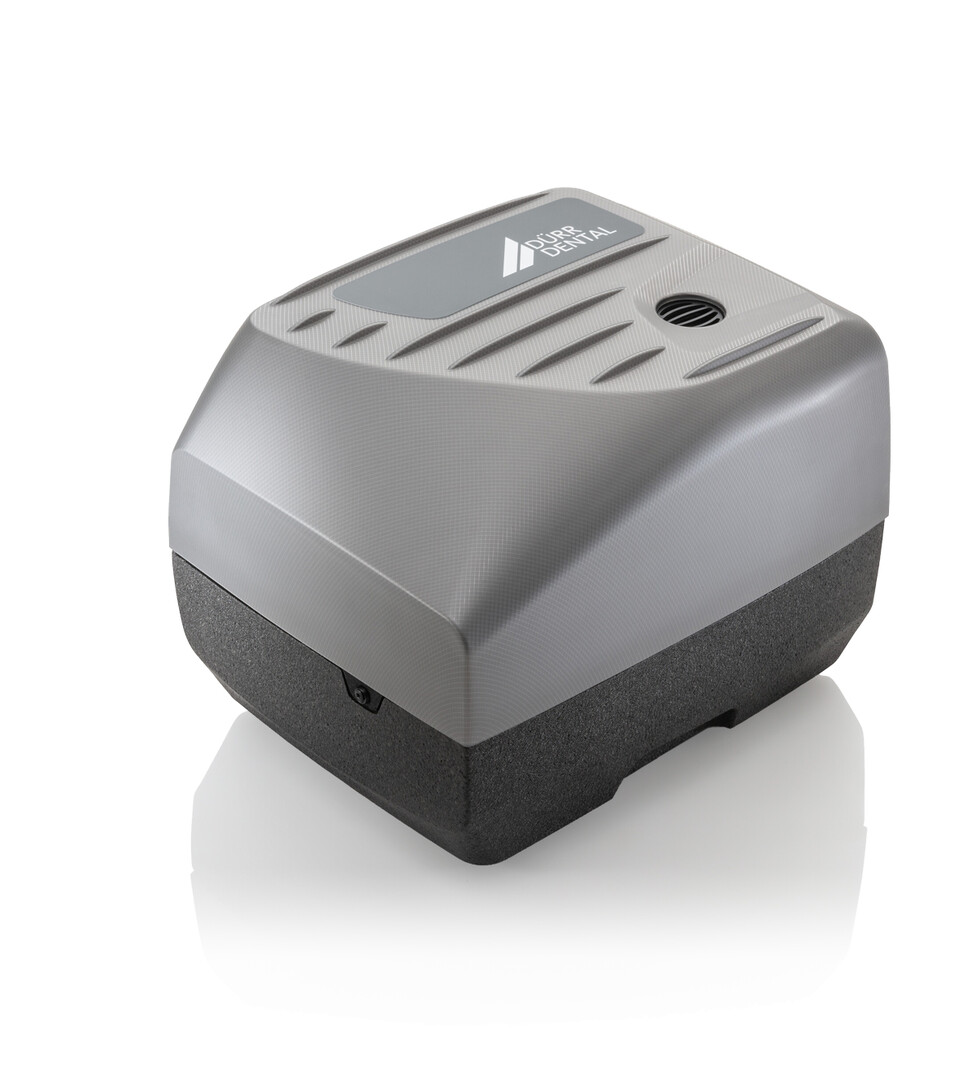

Dürr Dental Tyscor VS 2 Suction Unit
The Tyscor VS 2 is a wet suction unit from Dürr Dental’s new generation of suction systems with radial technology. Compact, lightweight suction for two users; intelligent control allows two units to run on a single suction pipe for up to 4 users. Up to 50% lighter than conventional units with up to 75% potential energy saving, Tyscor combines Dürr Dental quality and reliability with load-dependent automatic adjustment that provides constant suction at all times.
Key Features:
-
Capacity: Compact, lightweight suction for two users; intelligent control allows two units to run on a single suction pipe for up to 4 users
-
Wet Suction (VS): Suction and separation combined in one compact unit, with integrated two-stage separation preventing secretions and blood foam from entering the turbine; speed monitor switches the separator off before a defect can occur. With the attached rinsing unit it can also serve mixed wet/dry practices
-
Radial Technology: Vacuum compressor with radial technology: up to 50% lighter and up to 75% potential energy saving (measured on the Tyscor VS 4 against a comparable side channel compressor by the Fraunhofer Institute)
-
Load-dependent Control: Integrated control module adapts suction power to demand, with Eco, Balanced and Boost suction modes
-
Very Quiet: Noise-absorbing foamed plastic housing makes Tyscor one of the quietest suction units in its class without extra sound protection
-
Plug & Play: 230 V single-phase supply, so no three-phase current is needed; compact modular design for quick installation and maintenance
-
Network Ready: Network connection as standard for VistaSoft Monitor: live status, early warnings, automatic maintenance reminders and remote service
-
Low Heat Emission: Perfect heat management means the plant room heats up less
-
Hybrid Ceramic Bearings: Hybrid ball bearings with ceramic balls for smooth, low-maintenance running at high speed
-
Certified: Class IIa medical device under MDR (EU 2017/745); made in Germany
-
Accessories: Exhaust air virus-bacteria filter; noise reduction hood; upgrade kit Tyscor V/VS 1 to V/VS 2
-
Care: Dürr Dental recommends Orotol plus / Orotol ultra and MD 555 cleaner to prevent deposits and blockages
Technical Data:
-
Model: Tyscor VS 2
-
Type: Wet suction unit (VS)
-
Voltage: 230 V (1~), 50/60 Hz
-
Max. Electrical Output: 0.77 kW
-
Current Consumption: 3.3 A
-
Max. Vacuum: 160 mbar
-
Number of Operators: 2
-
Dimensions (H x W x D): 32 x 36 x 46 cm; 39 x 45 x 52 cm with housing
-
Weight: 11 kg
-
Noise Level: approx. 55 dB(A); approx. 50 dB(A) with housing
Noise levels apply to the suction unit and depend on the installation room; in a reverberant room (e.g. tiled walls) they may be higher.
