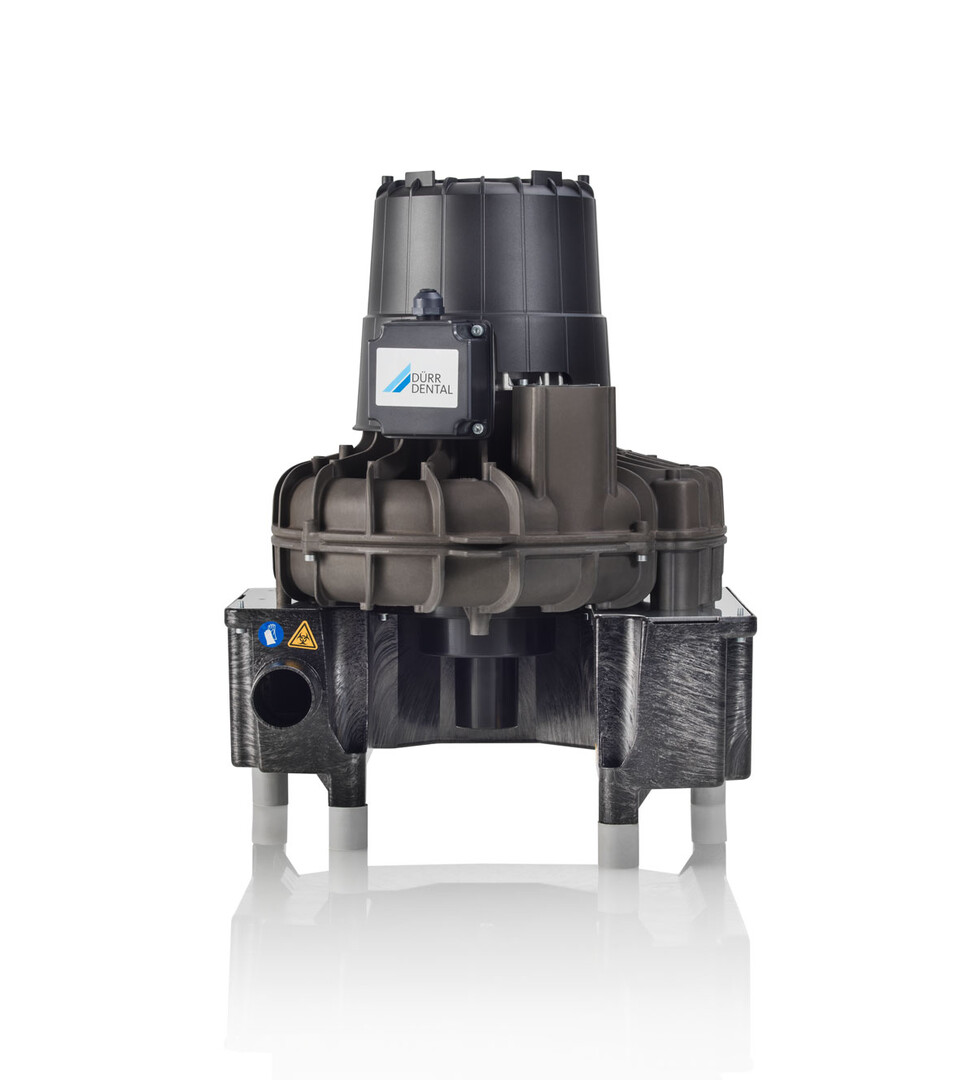

Dürr Dental V 1200 S Suction Unit

Dürr Dental V 1200 S Suction Unit

The Dürr Dental V 1200 S is a dry (V) suction unit for 4-6 treatment chairs, with 4 operators working simultaneously. In a dry system the aspirated substances are separated in the dental unit, so only dry air reaches the suction unit. Dürr Dental V units are extremely powerful yet run quietly, and are built for seven to eight hours of continuous operation.

Key Features:

• Capacity: 4-6 treatment chairs, 4 simultaneous operators
• Dry System: Separation and amalgam elimination take place in the dental unit, so only dry air reaches the suction unit
• Condensate Separator: Fitted as standard on all V models to protect the unit from condensate
• Continuous Operation: High-quality, robust drive motors and contact-free rotating turbine wheels for reliable non-stop operation
• High Suction Power: Full suction power within seconds
• Accessories: Wide range of accessories including housings, wall brackets, bacterial filters and silencers
• Care: Use Orotol® plus with MD 555 cleaner to prevent deposits and blockages; DürrConnect installation system available

Technical Data:

• Model: V 1200 S
• Type: Dry suction unit (V)
• Voltage: 400 V (3~), 50 Hz
• Electrical Output: 2.0 kW
• Current: 3.8 A
• Vacuum: 170 mbar (auxiliary air valve)
• Operators: 4
• Treatment Rooms: 6 (at 60% simultaneous use)
• Dimensions (H x W x D): 52 x 41 x 42 cm; 57 x 62 x 42 cm with condensate separator; 55 x 49 x 53 cm with housing
• Weight: 33 kg; 43 kg with housing
• Noise Level: Approx. 66 dB(A); 59 dB(A) with housing
• Runners: Coated aluminium

Value ranges result from 50-60 Hz mains frequency. Noise levels depend on the installation room and may be higher in reverberant rooms.
