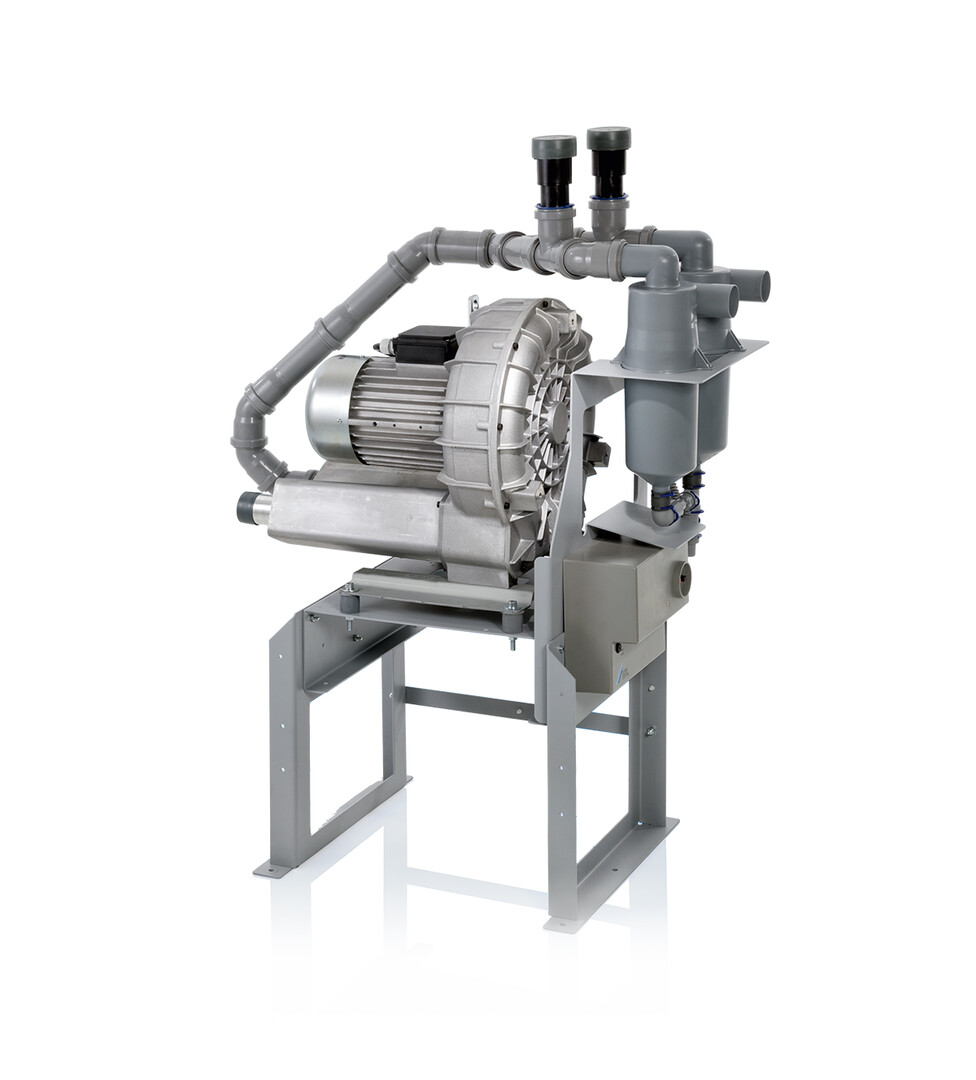

Dürr Dental V 2400 Suction Unit

Dürr Dental V 2400 Suction Unit

The Dürr Dental V 2400 is a dry (V) suction unit for up to 14 treatment chairs, with 8 operators working simultaneously. In a dry system the aspirated substances are separated in the dental unit, so only dry air reaches the suction unit. Dürr Dental V units are extremely powerful yet run quietly, and are built for seven to eight hours of continuous operation.

Key Features:

• Capacity: up to 14 treatment chairs, 8 simultaneous operators
• Dry System: Separation and amalgam elimination take place in the dental unit, so only dry air reaches the suction unit
• Condensate Separator: Fitted as standard on all V models to protect the unit from condensate
• Continuous Operation: High-quality, robust drive motors and contact-free rotating turbine wheels for reliable non-stop operation
• High Suction Power: Full suction power within seconds
• Accessories: Wide range of accessories including housings, wall brackets, bacterial filters and silencers
• Care: Use Orotol® plus with MD 555 cleaner to prevent deposits and blockages; DürrConnect installation system available

Technical Data:

• Model: V 2400
• Type: Dry suction unit (V)
• Voltage: 400 V (3~), 50 Hz
• Electrical Output: 3.3 kW
• Current: 5.6 A
• Vacuum: 170 mbar
• Operators: 8
• Treatment Rooms: 12 (at 60% simultaneous use); up to 14 treatment chairs
• Dimensions (H x W x D): 115 x 80 x 48 cm with condensate separator
• Weight: 65 kg
• Noise Level: Approx. 70 dB(A)

Value ranges result from 50-60 Hz mains frequency. Noise levels depend on the installation room and may be higher in reverberant rooms.
