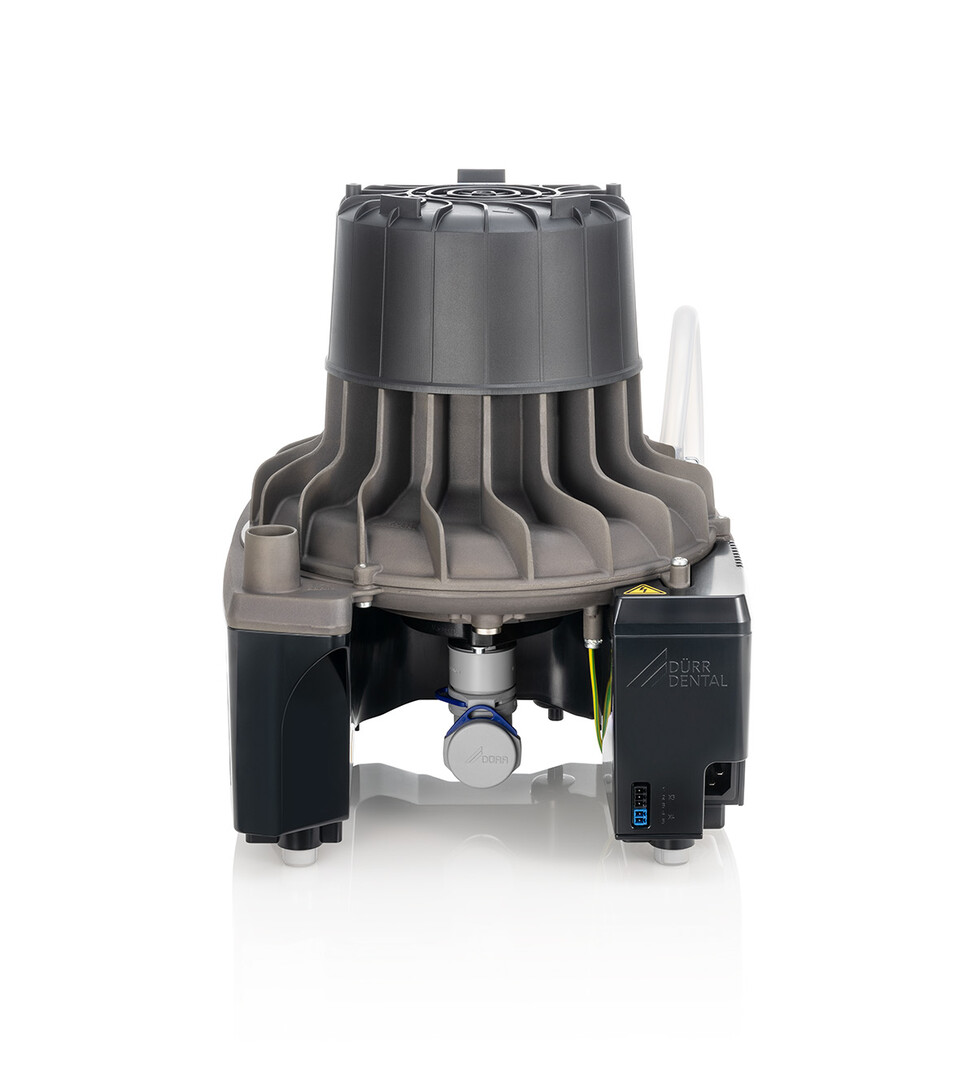

Dürr Dental V 300 S Suction Unit

Dürr Dental V 300 S Suction Unit

The Dürr Dental V 300 S is a dry (V) suction unit for 1-2 treatment chairs, with 1 operator working simultaneously. In a dry system the aspirated substances are separated in the dental unit, so only dry air reaches the suction unit. Dürr Dental V units are extremely powerful yet run quietly, and are built for seven to eight hours of continuous operation.

Key Features:

• Capacity: 1-2 treatment chairs, 1 simultaneous operator
• Dry System: Separation and amalgam elimination take place in the dental unit, so only dry air reaches the suction unit
• Condensate Separator: Fitted as standard on all V models to protect the unit from condensate
• Continuous Operation: High-quality, robust drive motors and contact-free rotating turbine wheels for reliable non-stop operation
• High Suction Power: Full suction power within seconds
• Accessories: Wide range of accessories including housings, wall brackets, bacterial filters and silencers
• Care: Use Orotol® plus with MD 555 cleaner to prevent deposits and blockages; DürrConnect installation system available

Technical Data:

• Model: V 300 S
• Type: Dry suction unit (V)
• Voltage: 230 V (1~), 50-60 Hz
• Electrical Output: 0.58-0.8 kW
• Current: 2.9-3.7 A
• Vacuum: 180 mbar
• Operators: 1
• Treatment Rooms: 1-2 (at 60% simultaneous use)
• Dimensions (H x W x D): 37 x 31 x 31 cm; 43 x 38 x 43 cm with condensate separator; 51 x 36 x 36 cm with housing
• Weight: 12.5 kg; 20 kg with housing
• Noise Level: Approx. 63-65 dB(A); 54-56 dB(A) with housing
• Runners: Corrosion-resistant plastic

Value ranges result from 50-60 Hz mains frequency. Noise levels depend on the installation room and may be higher in reverberant rooms.
