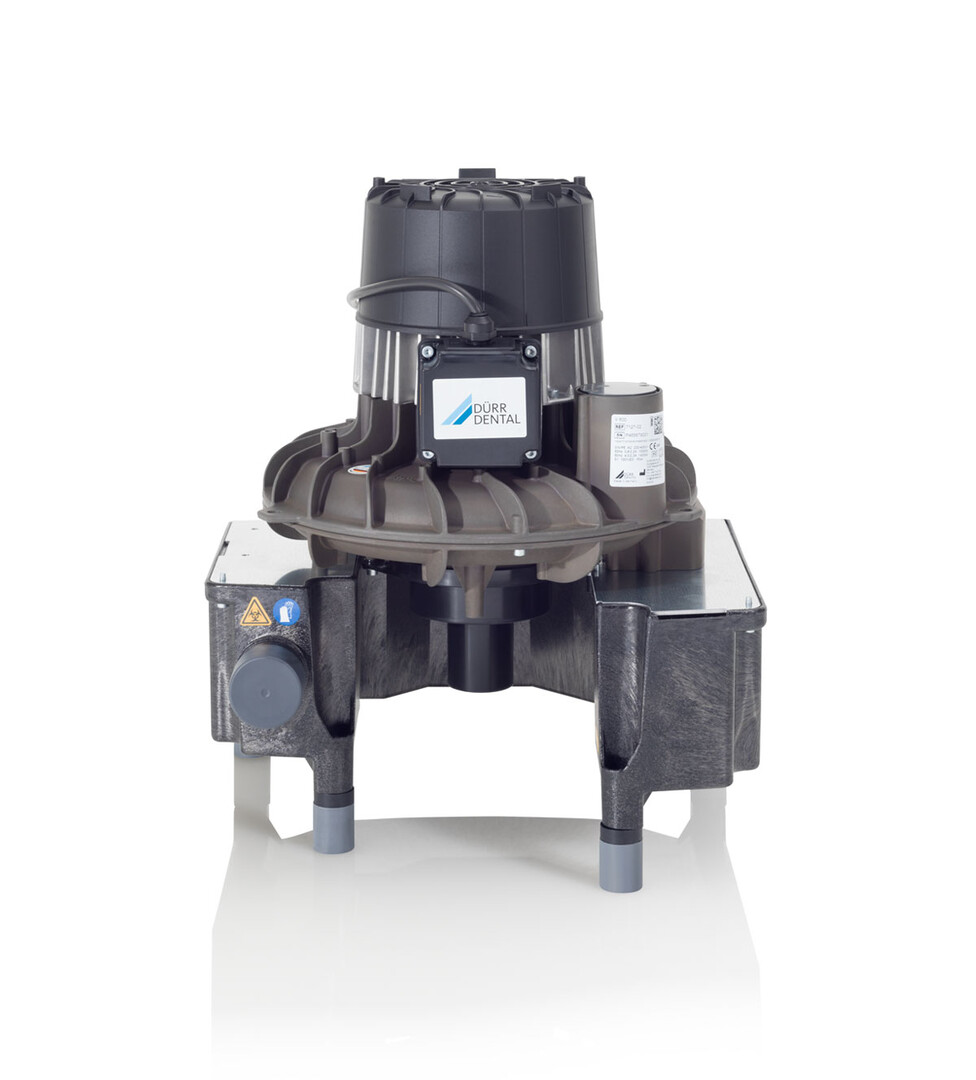

Dürr Dental V 600 Suction Unit

Dürr Dental V 600 Suction Unit

The Dürr Dental V 600 is a dry (V) suction unit for 2-3 treatment chairs, with 2 operators working simultaneously. In a dry system the aspirated substances are separated in the dental unit, so only dry air reaches the suction unit. Dürr Dental V units are extremely powerful yet run quietly, and are built for seven to eight hours of continuous operation.

Key Features:

• Capacity: 2-3 treatment chairs, 2 simultaneous operators
• Dry System: Separation and amalgam elimination take place in the dental unit, so only dry air reaches the suction unit
• Condensate Separator: Fitted as standard on all V models to protect the unit from condensate
• Continuous Operation: High-quality, robust drive motors and contact-free rotating turbine wheels for reliable non-stop operation
• High Suction Power: Full suction power within seconds
• Accessories: Wide range of accessories including housings, wall brackets, bacterial filters and silencers
• Care: Use Orotol® plus with MD 555 cleaner to prevent deposits and blockages; DürrConnect installation system available

Technical Data:

• Model: V 600
• Type: Dry suction unit (V)
• Voltage: 230 V (1~), 50 Hz or 400 V (3~), 50-60 Hz
• Electrical Output: 1.10 kW (230 V) / 1.00-1.42 kW (400 V)
• Current: 5.0 A (230 V) / 1.8-4.0 A (400 V)
• Vacuum: 170 mbar (auxiliary air valve)
• Operators: 2
• Treatment Rooms: 3 (at 60% simultaneous use)
• Dimensions (H x W x D): 50 x 42 x 41 cm; 57 x 62 x 41 cm with condensate separator; 50 x 49 x 53 cm with housing
• Weight: 25 kg; 33 kg with housing
• Noise Level: Approx. 63 dB(A) (230 V) / 63-68 dB(A) (400 V); 55 / 55-59 dB(A) with housing
• Runners: Corrosion-resistant plastic

Value ranges result from 50-60 Hz mains frequency. Noise levels depend on the installation room and may be higher in reverberant rooms.
