Dürr VSA 300 S Suction & Amalgam Separator

Description

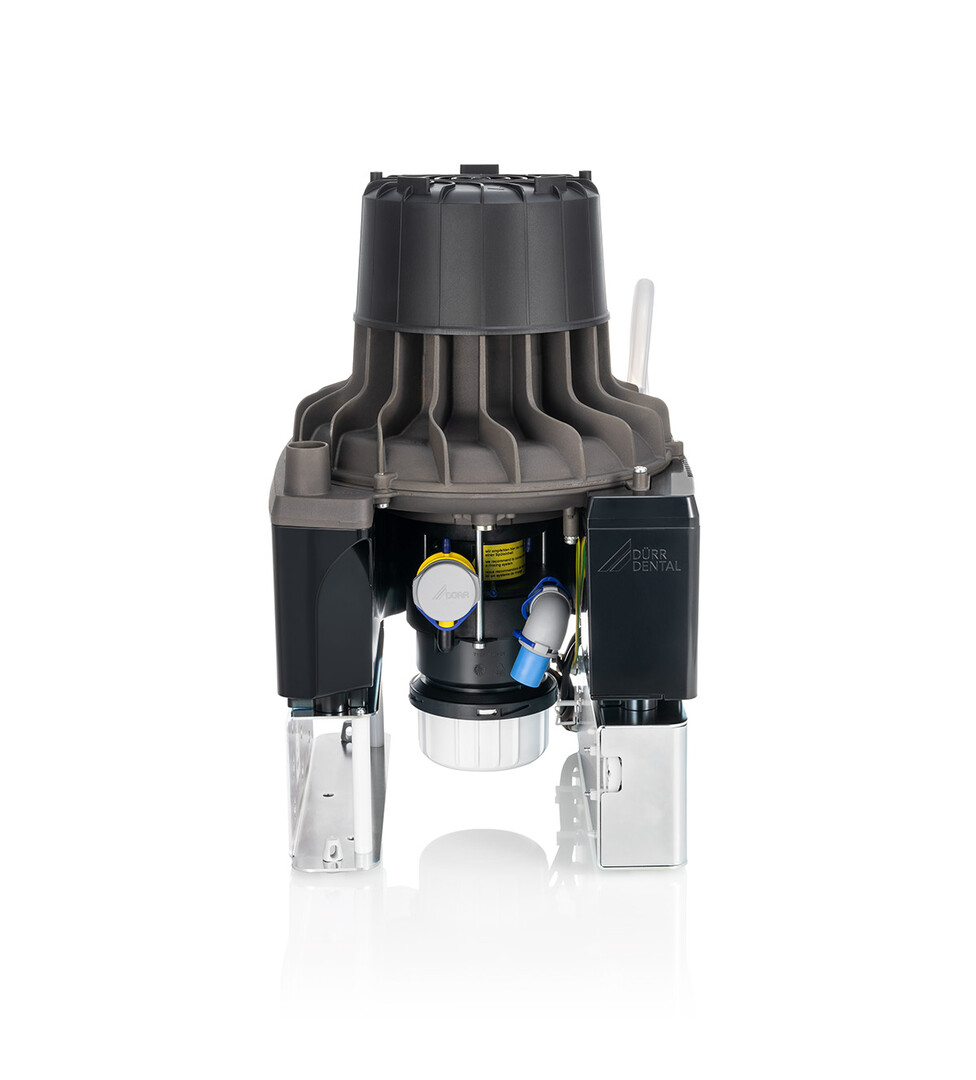

Dürr Dental VSA 300 S Suction Unit

The VSA 300 S runs all three components of a suction system – the suction motor, the separation unit and the amalgam separator – in one system unit and on one shaft, in as little space as possible. It is ideally suited to a single treatment station and is easy to install in a basement, a room adjoining the surgery or the treatment room itself.

Key Features:

3-in-1 Technology: Suction, separation and amalgam separation all on one shaft
Cost-effective: Economical and environmentally friendly system
Automatic Fill Level Control: Monitors the amalgam collector vessel
Flexible Installation: Basement, adjoining room or treatment room
Collector Vessel: Effective volume approx. 150 cm³, replaced every 6-9 months
Care: Use Orotol® plus with MD 555 cleaner to prevent deposits and blockages; DürrConnect installation system available

Technical Data:

Model: VSA 300 S
Type: Wet suction unit with integrated amalgam separator
Voltage: 230 V (1~), 50 Hz
Electrical Output: 0.58 kW
Current: 2.9 A
Vacuum: 180 mbar
Operators: 1
Treatment Rooms: 1
Max. Flow Rate: 5 l/min
Dimensions (H x W x D): 48 x 31 x 31 cm; 51 x 36 x 36 cm with housing
Weight: 14 kg; 21.5 kg with housing
Noise Level: Approx. 63 dB(A); 54 dB(A) with housing
Separation Efficiency: 97.5%
Quality Mark: Z 64.1-15

Additional information

Model	VSA 300 S
Type	Wet (VSA) with amalgam separator
Operators	1

Model	VSA 300 S
Type	Wet suction unit with integrated amalgam separator
Voltage	230 V (1~), 50 Hz
Electrical Output	0.58 kW
Current	2.9 A
Vacuum	180 mbar
Operators	1
Treatment Rooms	1
Max. Flow Rate	5 l/min
Dimensions (H x W x D)	48 x 31 x 31 cm; 51 x 36 x 36 cm with housing
Weight	14 kg; 21.5 kg with housing
Noise Level	Approx. 63 dB(A); 54 dB(A) with housing
Separation Efficiency	97.5%
Quality Mark	Z 64.1-15
