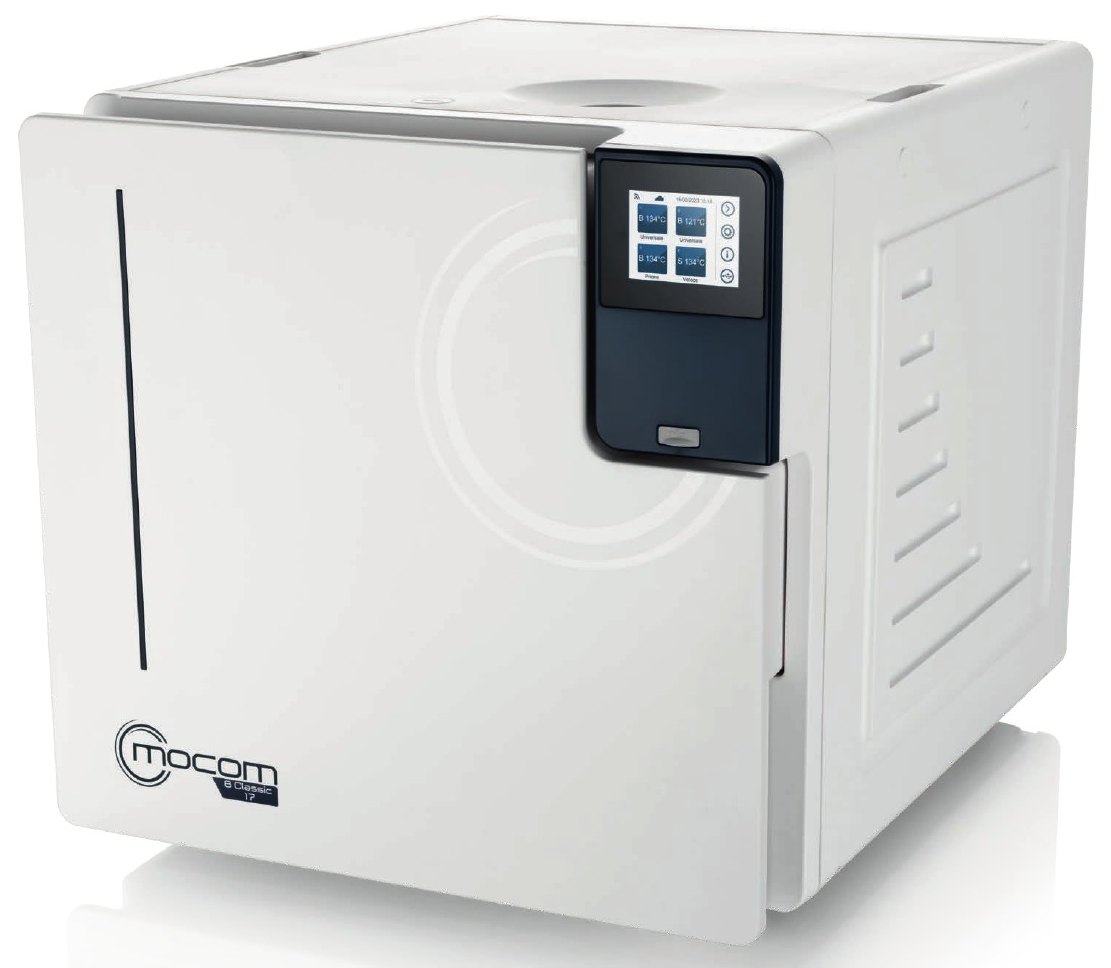

Mocom B Classic

Mocom B Classic Class B autoclave, available in 17, 22 and 28 litres with identical external dimensions. A versatile, essential steriliser with a 3.2″ glass touchscreen, custom cycle, operator ID and Wi-Fi/Ethernet connectivity.

Category: Autoclaves Brand: Mocom

Description

Mocom B Classic

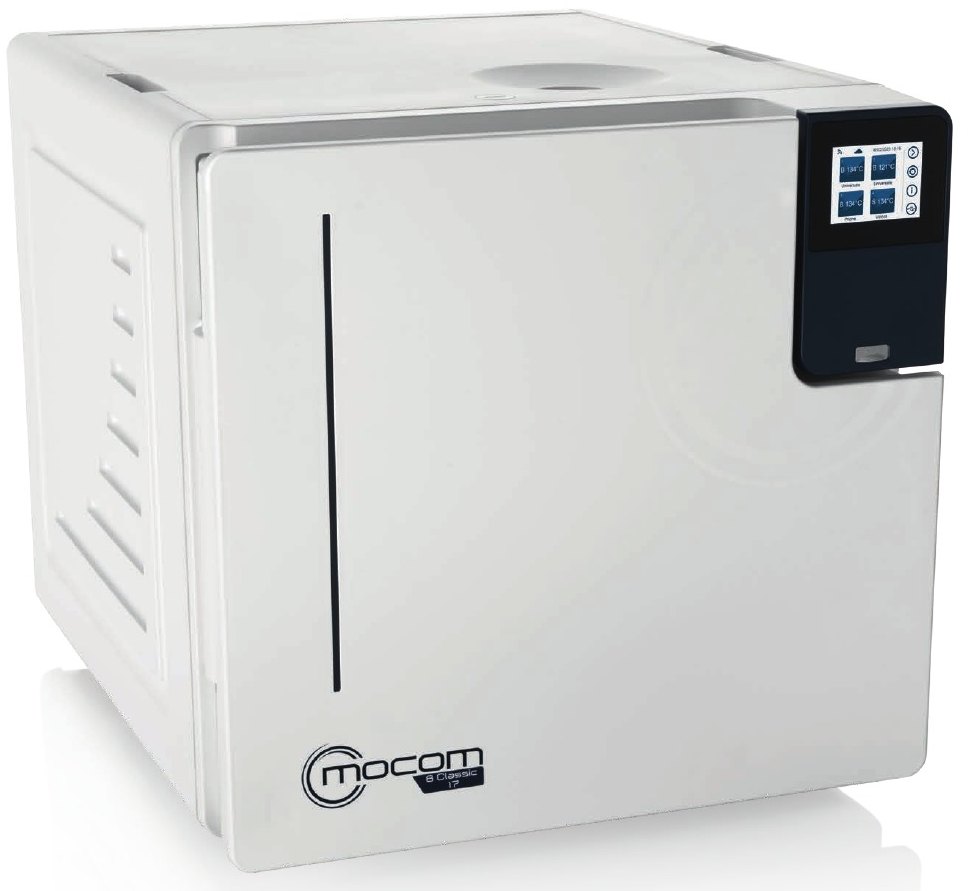

The Mocom B Classic is a versatile, effective and essential Class B autoclave. Modern design and three chamber volumes (17, 22 and 28 litres) in one external size give maximum flexibility, while easy-to-clean surfaces and a user-friendly display deliver outstanding day-to-day practicality without compromising sterilisation quality.

Key Features:

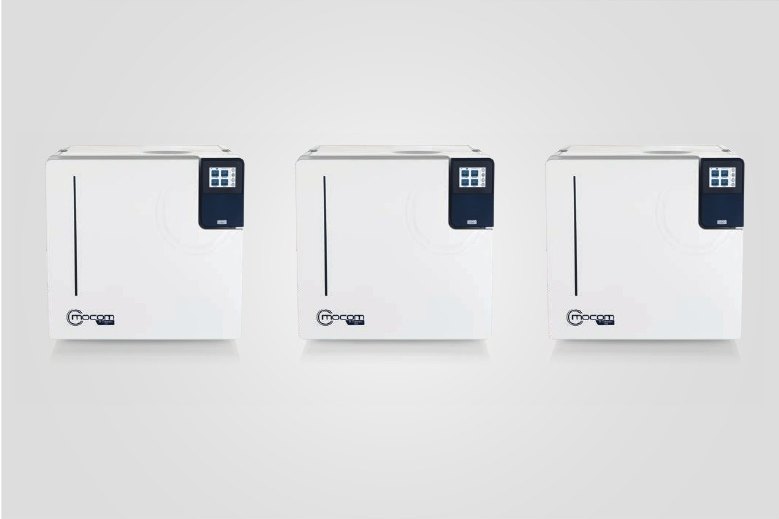

Three Volumes, One Size: 17, 22 and 28 litre versions share the same external dimensions, making installation easy, even when recessed.

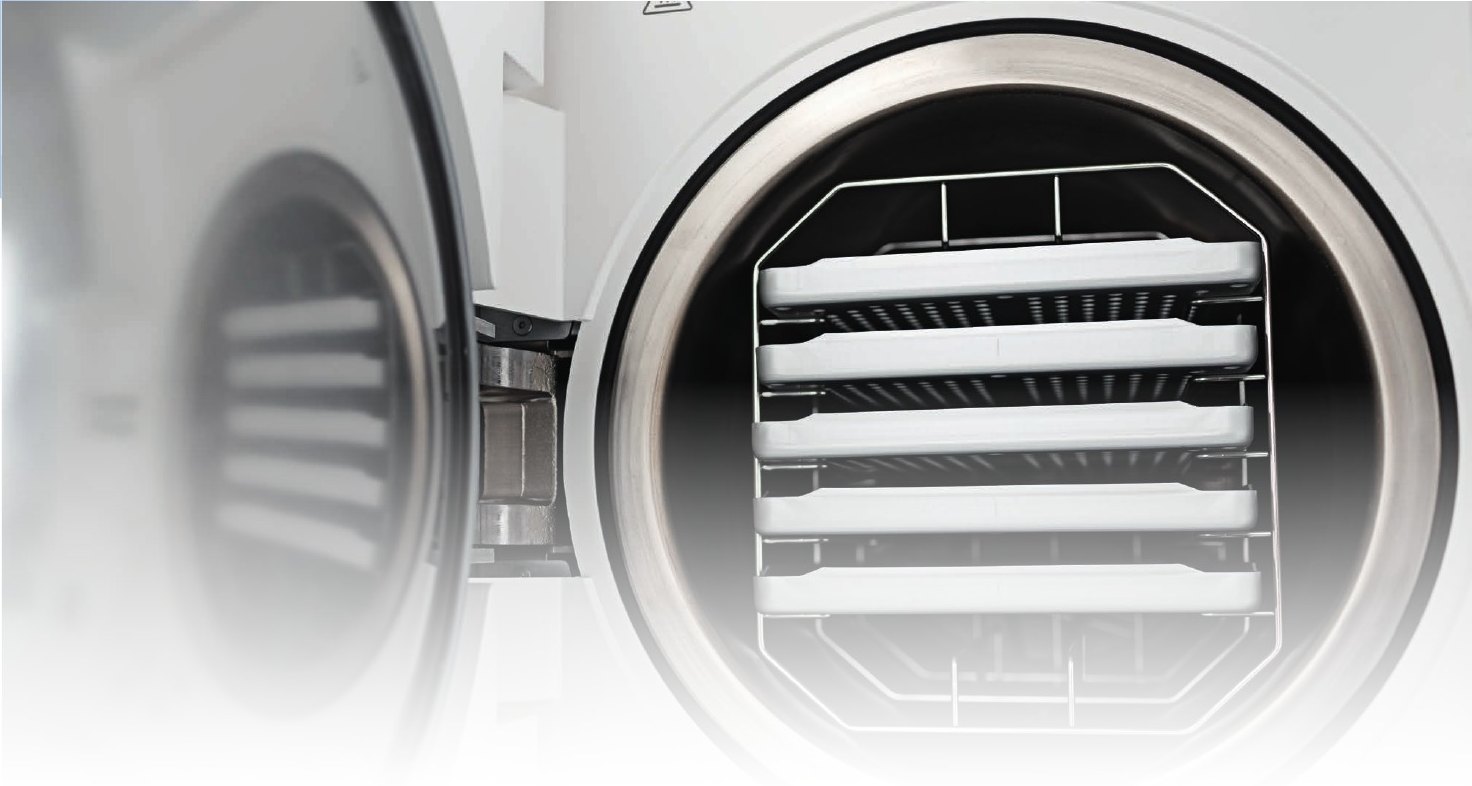

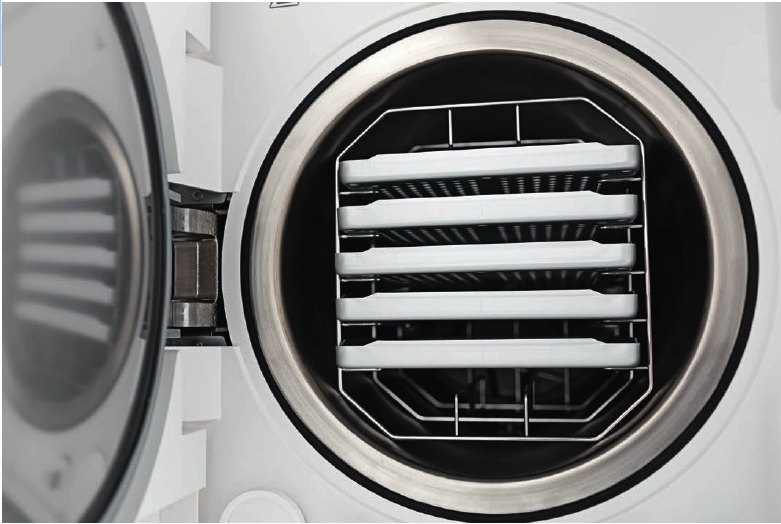

Load Versatility: 17 and 22 L models come with five trays (up to three drawers); the 28 L comes with six trays (up to four drawers). Optional Modular Tray Holder for maximum configurability.

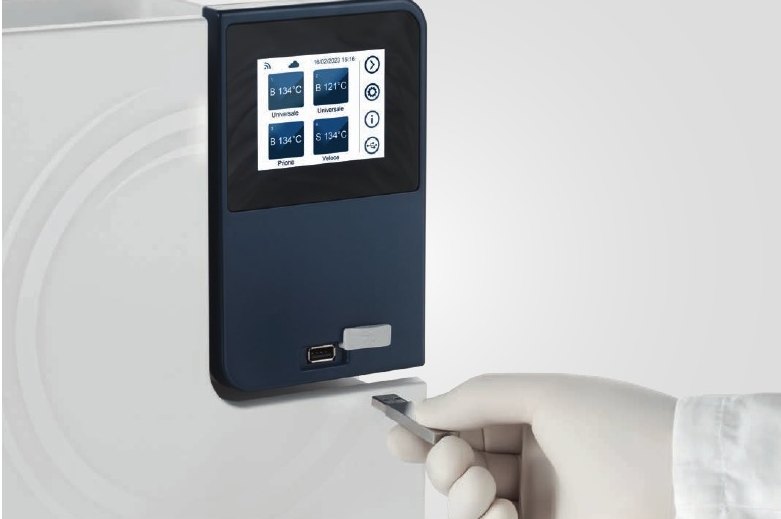

User-Friendly Display: 3.2″ glass touchscreen for intuitive control of the whole sterilisation process, with hygienic, easy-to-clean surfaces.
Operator ID: PIN access so only authorised staff can use the machine, with a full usage history.
Custom Cycle: Create a customised cycle from a pre-set range of legally compliant values (134°C or 121°C, adjustable sterilisation and drying times).
Reminders: On-screen reminders for Vacuum Test, Helix / Bowie & Dick Test and scheduled maintenance.
Delayed Start and Extra Drying: Programme cycle start times and extend drying for difficult loads.
Connectivity and Traceability: Wi-Fi and Ethernet connection for cloud platforms and automatic software downloads; up to 10,000 cycle reports stored and downloadable as PDF via USB or automatically with the supplied DataSter software.
Cloud Services (optional): Di.V.A. cloud environment for cycle reports, device status, video tutorials and usage statistics; EasyCheck remote technical support and software updates.

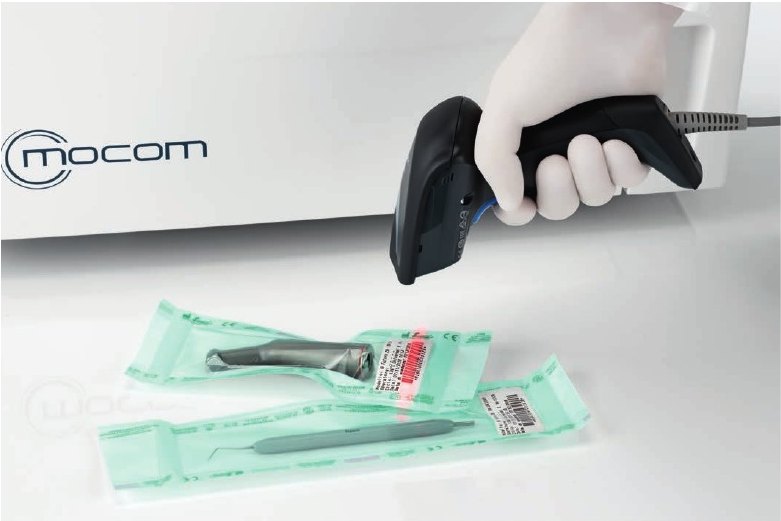

Traceability (optional): MyTrace software, barcode reader and external label printer to link sterilised instrument sets to patients.

Technical Data:

Available volumes: 17, 22 and 28 litres (identical external dimensions)
Rated power: 2300 W
External dimensions (L x H x D): 500 x 490 x 600 mm
Chamber dimensions (diam. x depth): 17 L: 250 x 350 mm; 22 L: 250 x 450 mm; 28 L: 280 x 450 mm
Total weight: 17 L: 46 kg; 22 L: 49 kg; 28 L: 52 kg
134°C Universal cycle time (17 / 22 / 28 L): 42 / 46 / 56 min

Please note: Cycle times are based on an average load and exclude pre-heating.

Additional information

Vessel Size	22 Litre, 28 Litre, 17 Litre
Cycle Type	S-Type, B-Type
Cycle Time	42 Minutes
Power (W)	2300 W
Power Supply	220/240 V 50Hz, 220/230 V 60Hz
Model	B Classic

Available volumes	17, 22 and 28 litres (identical external dimensions)
Power supply	220/240 V 50 Hz; 220/230 V 60 Hz
Rated power	2300 W
External dimensions (L x H x D)	500 x 490 x 600 mm
Chamber dimensions (diam. x depth)	17 L: 250 x 350 mm; 22 L: 250 x 450 mm; 28 L: 280 x 450 mm
Total weight	17 L: 46 kg; 22 L: 49 kg; 28 L: 52 kg
Tank capacity	6 litres
Autonomy	17 L: 9-13 cycles; 22 L: 8-12 cycles; 28 L: 7-11 cycles
Display	3.2″ glass touchscreen

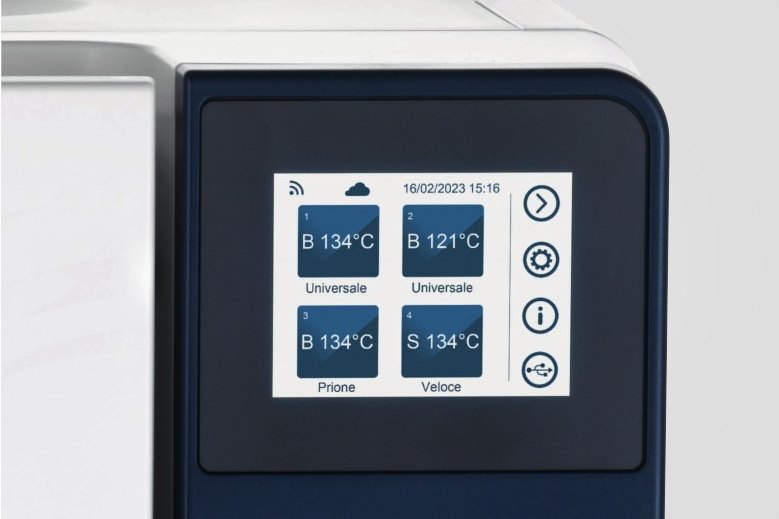

Cycles	134°C Universal (B), 121°C Universal (B), 134°C Fast (S), 134°C Packed solid instruments (S), 134°C Prion (B), Custom (S: 134°C/121°C, adjustable sterilisation and drying times)
134°C Universal cycle time (17 / 22 / 28 L)	42 / 46 / 56 min
134°C Fast cycle time (17 / 22 / 28 L)	22 / 25 / 28 min
134°C Prion cycle time (17 / 22 / 28 L)	56 / 60 / 70 min
Tests	Vacuum Test, Helix / Bowie & Dick Test, or both in sequence
Certification	CE 0051

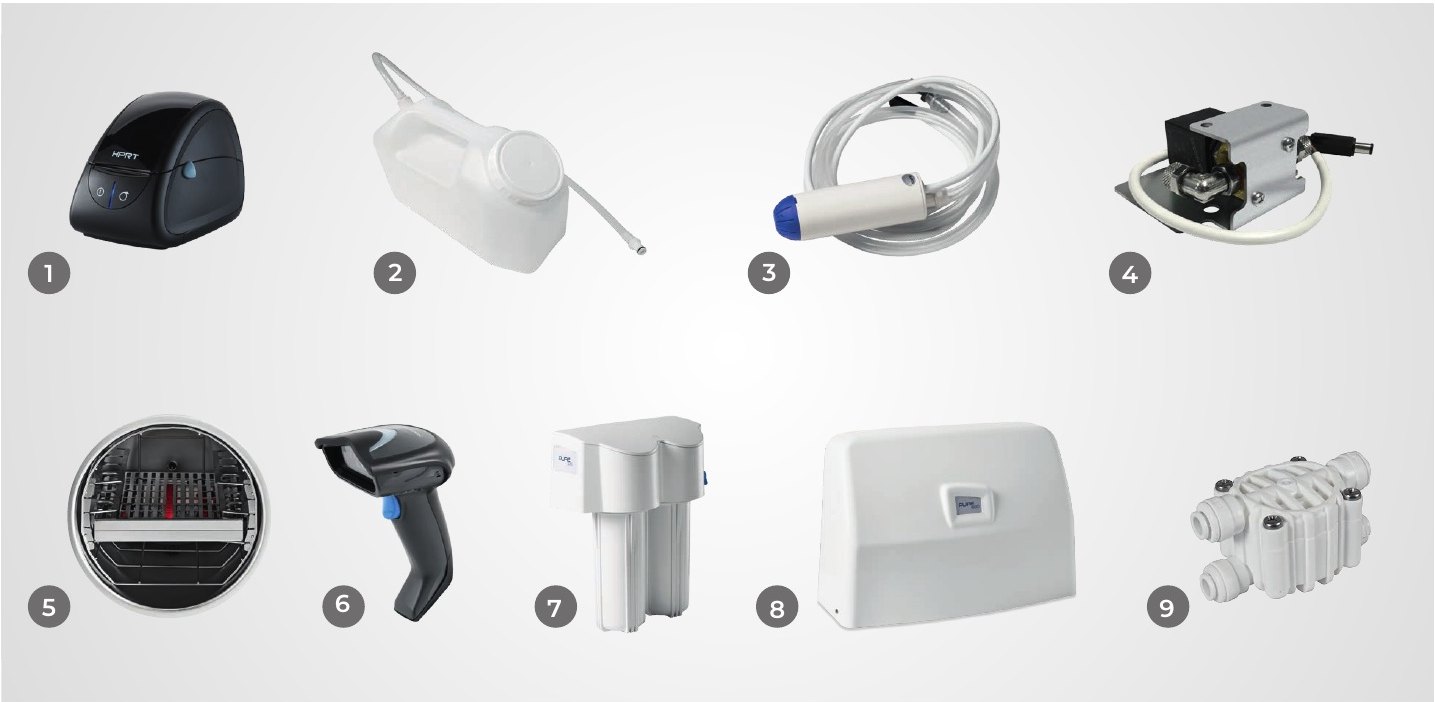

Optional accessories	External printer, front filling kit, automatic filling kit, EV aux kit, Modular Tray Holder, barcode reader, Pure 100 and Pure 500 demineralisers, Twin Pure 500 kit
