Description

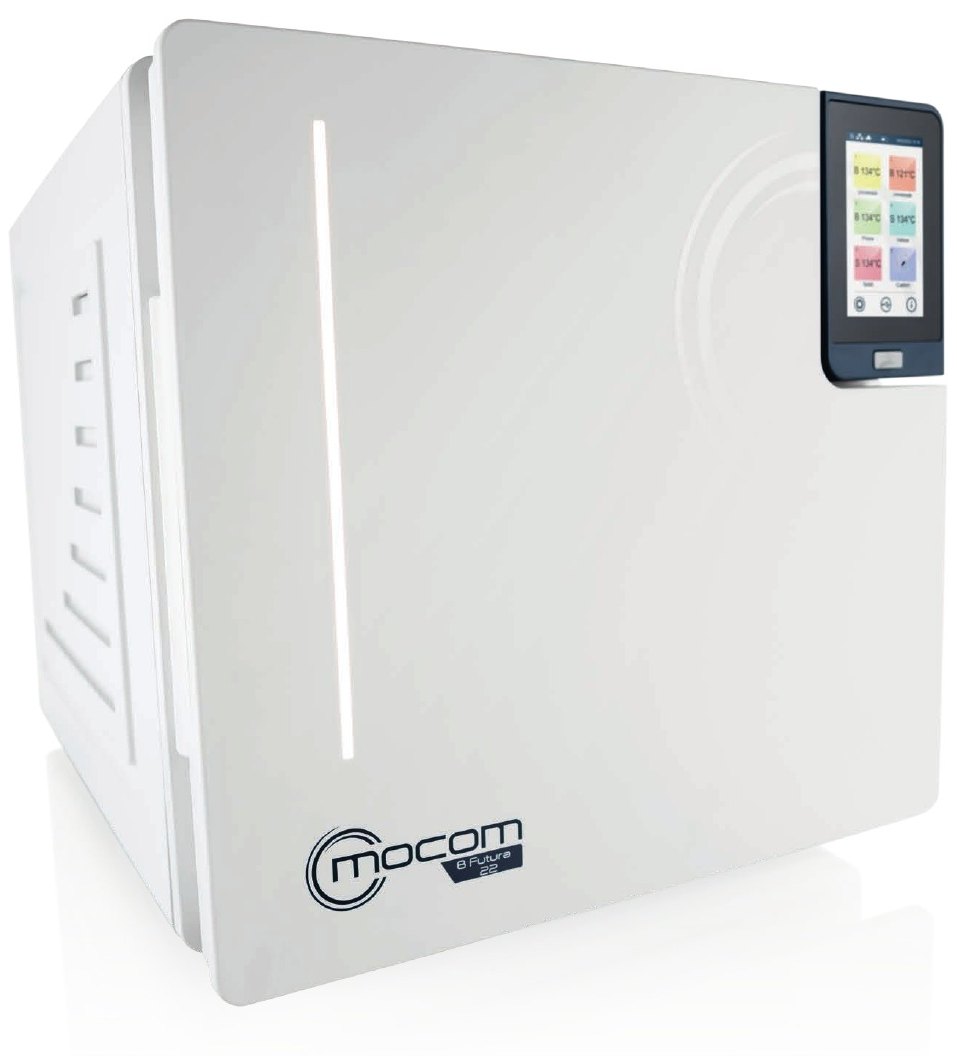

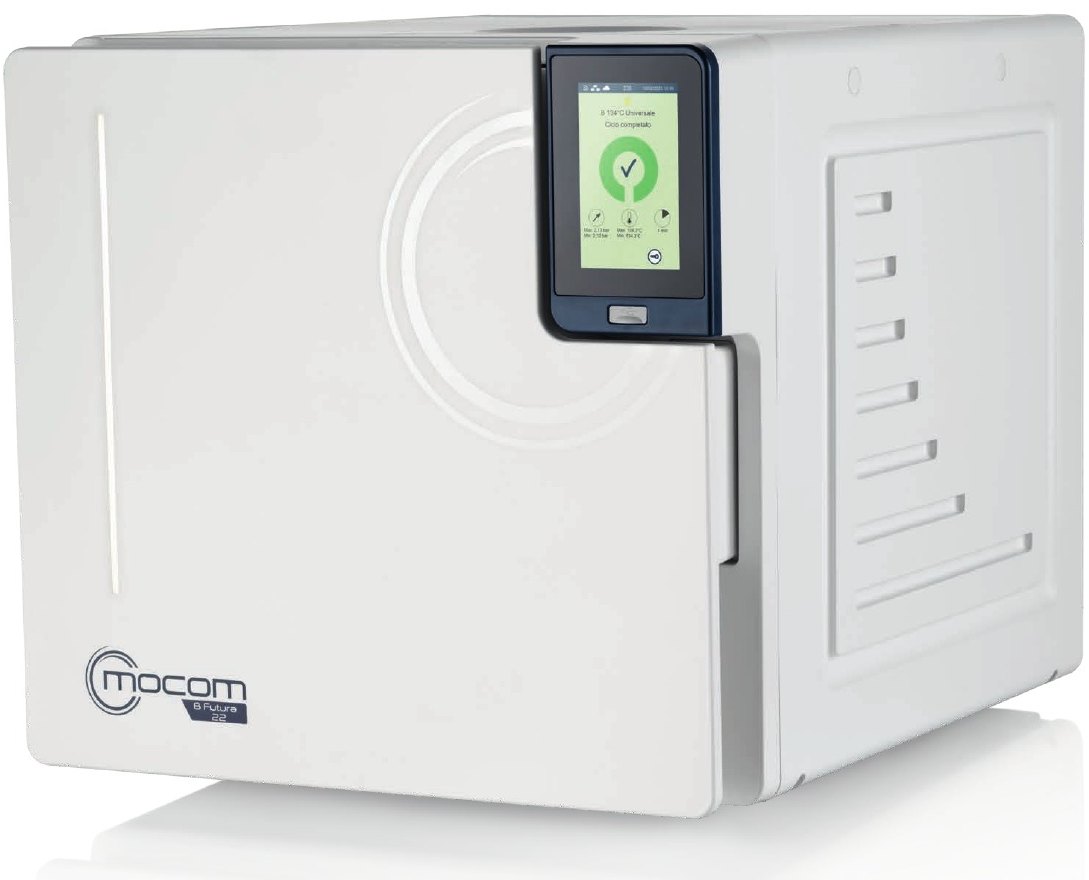

Mocom B Futura
The Mocom B Futura combines high-performance technology with practicality and flexibility. An integrated demineralising filter lets you run it on ordinary mains water, the 5″ colour touchscreen makes every function simple, and the exclusive Modular Drying function shortens cycles so a complete B cycle can take just 31 minutes.
Key Features:
-

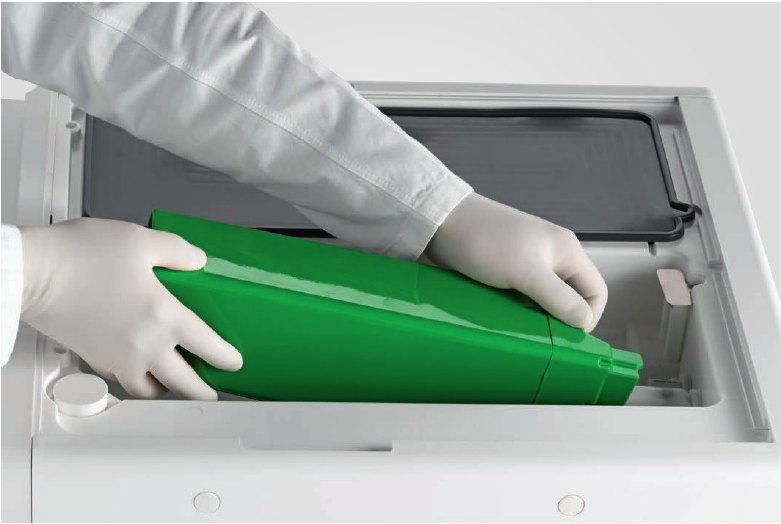

Integrated Water Treatment: A built-in demineralising filter lets you fill with normal mains water, with no external treatment device; sensors monitor water quality and the display warns when the filter needs changing.
-
Modular Drying: Select the load quantity and the drying phase adapts to it, cutting cycle times: a complete B cycle in 31 minutes.
-

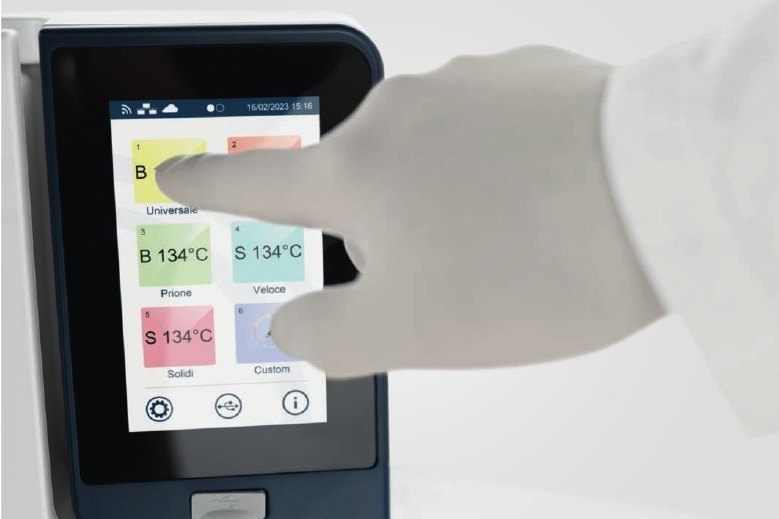

5″ Colour Touchscreen: Simple, complete interface organising every function into easy menus, plus built-in video tutorials and the user manual on screen.
-

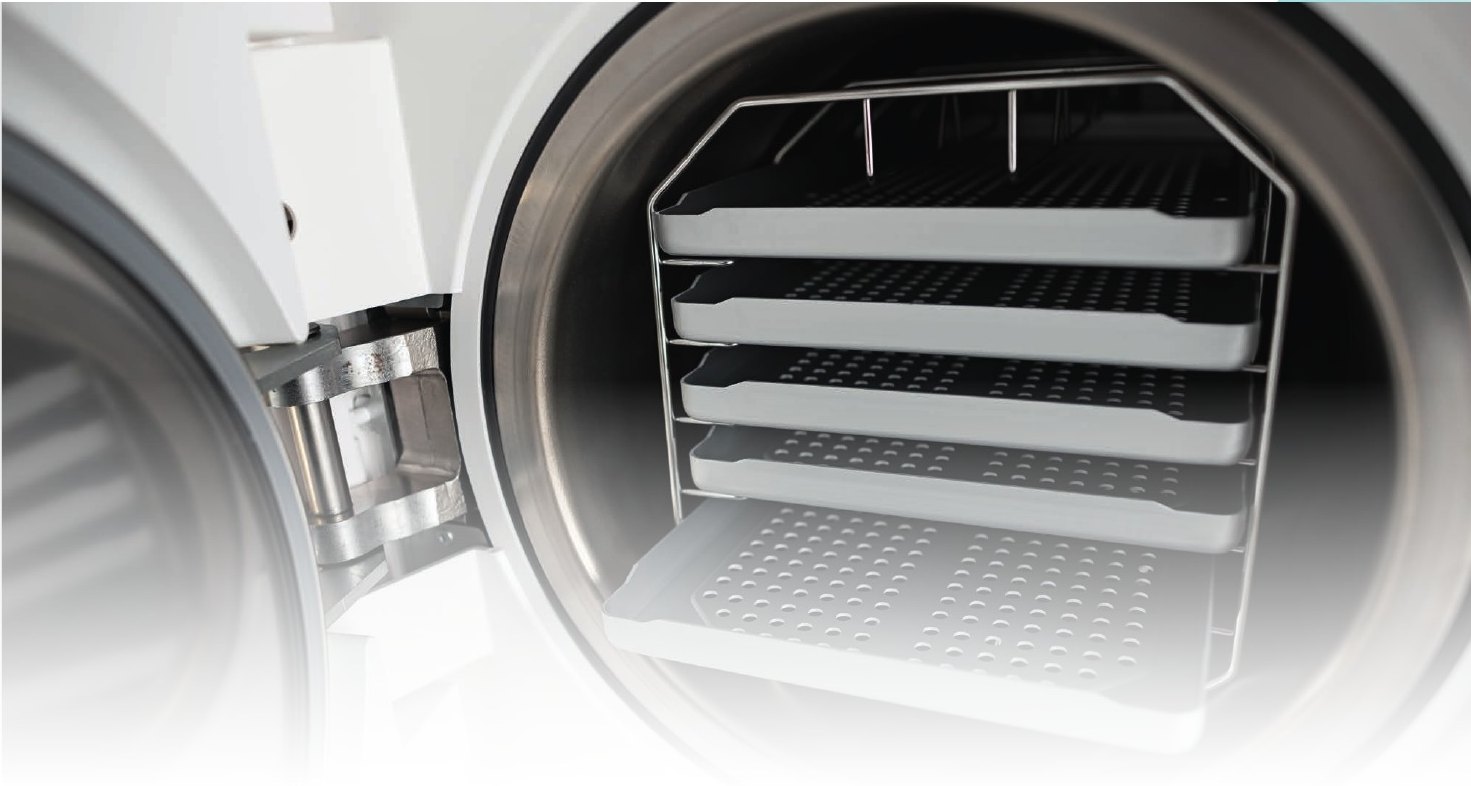

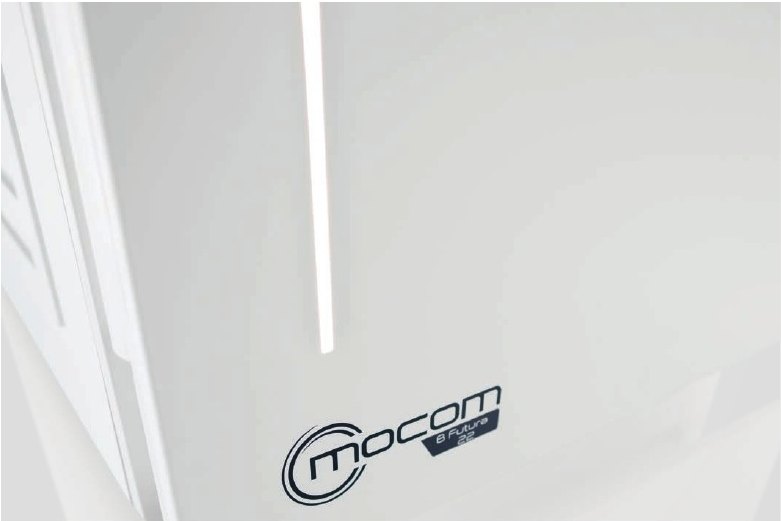

Renewed Design: Precise joints with fewer attachment points for better hygiene, glass control panel, a front status indicator light and LED chamber lighting when the door opens.
-

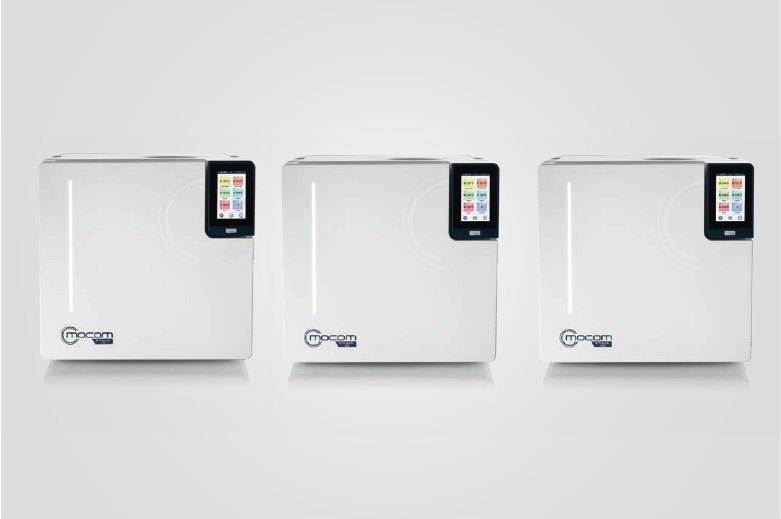

Three Volumes, One Size: 17, 22 and 28 litres with identical external dimensions for worktop or column installation.
-
Custom Cycle: Create a customised cycle from a pre-set range of legally compliant values (134°C or 121°C, adjustable sterilisation and drying times).
-
Reminders: On-screen reminders for Vacuum Test, Helix / Bowie & Dick Test and scheduled maintenance.
-
Delayed Start and Extra Drying: Programme cycle start times and extend drying for difficult loads.
-

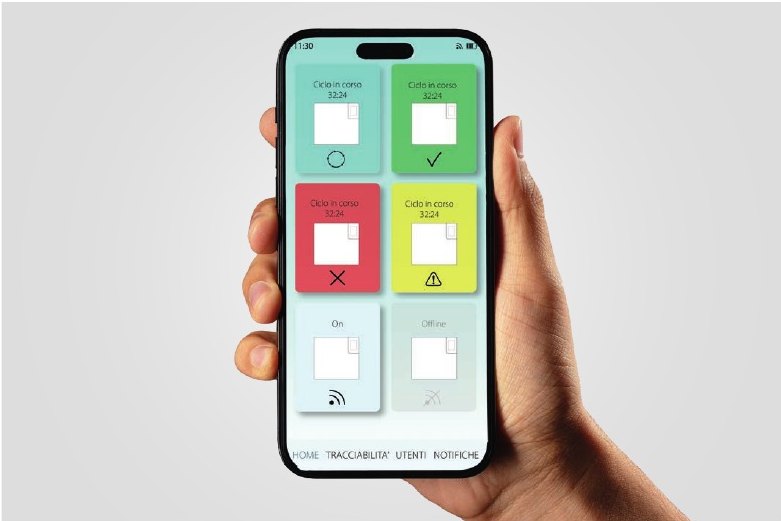

SterilConnect: Monitor device status and manage the steriliser from any networked tablet or smartphone.
-

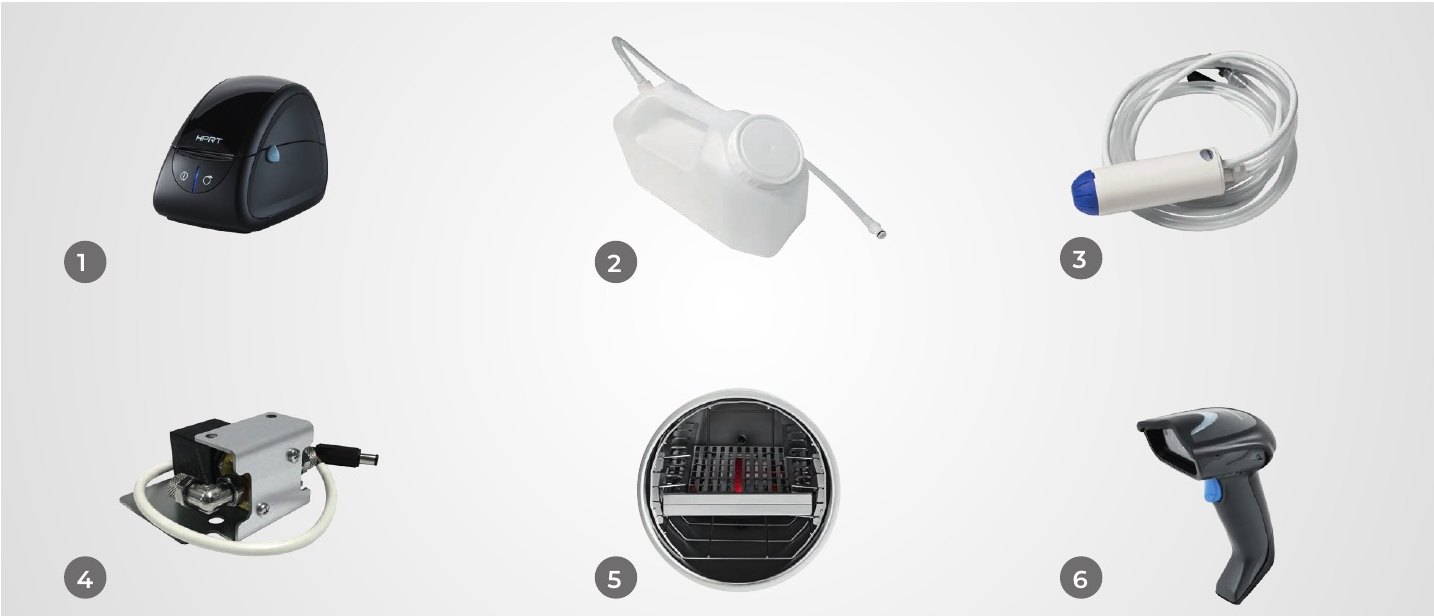

QR Code Labels and Shared Printer: Print QR code or barcode labels for sterile packs at the end of each cycle; the optional printer can be shared between several sterilisers on the same network.
-
Connectivity and Traceability: Wi-Fi and Ethernet connection for cloud platforms and automatic software downloads; up to 10,000 cycle reports stored and downloadable as PDF via USB or automatically with the supplied DataSter software.
-
Cloud Services (optional): Di.V.A. cloud environment for cycle reports, device status, video tutorials and usage statistics; EasyCheck remote technical support and software updates.
Technical Data:
-
Available volumes: 17, 22 and 28 litres (identical external dimensions)
-
Rated power: 2300 W
-
External dimensions (L x H x D): 500 x 490 x 600 mm
-
Chamber dimensions (diam. x depth): 17 L: 250 x 350 mm; 22 L: 250 x 450 mm; 28 L: 280 x 450 mm
-
Total weight: 17 L: 47 kg; 22 L: 50 kg; 28 L: 51 kg
-
134°C Universal cycle time (17 / 22 / 28 L): 39 (31) / 42 (34) / 52 (44) min, figures in brackets with Modular Drying
Please note: Cycle times are based on an average load and exclude pre-heating.
