Description

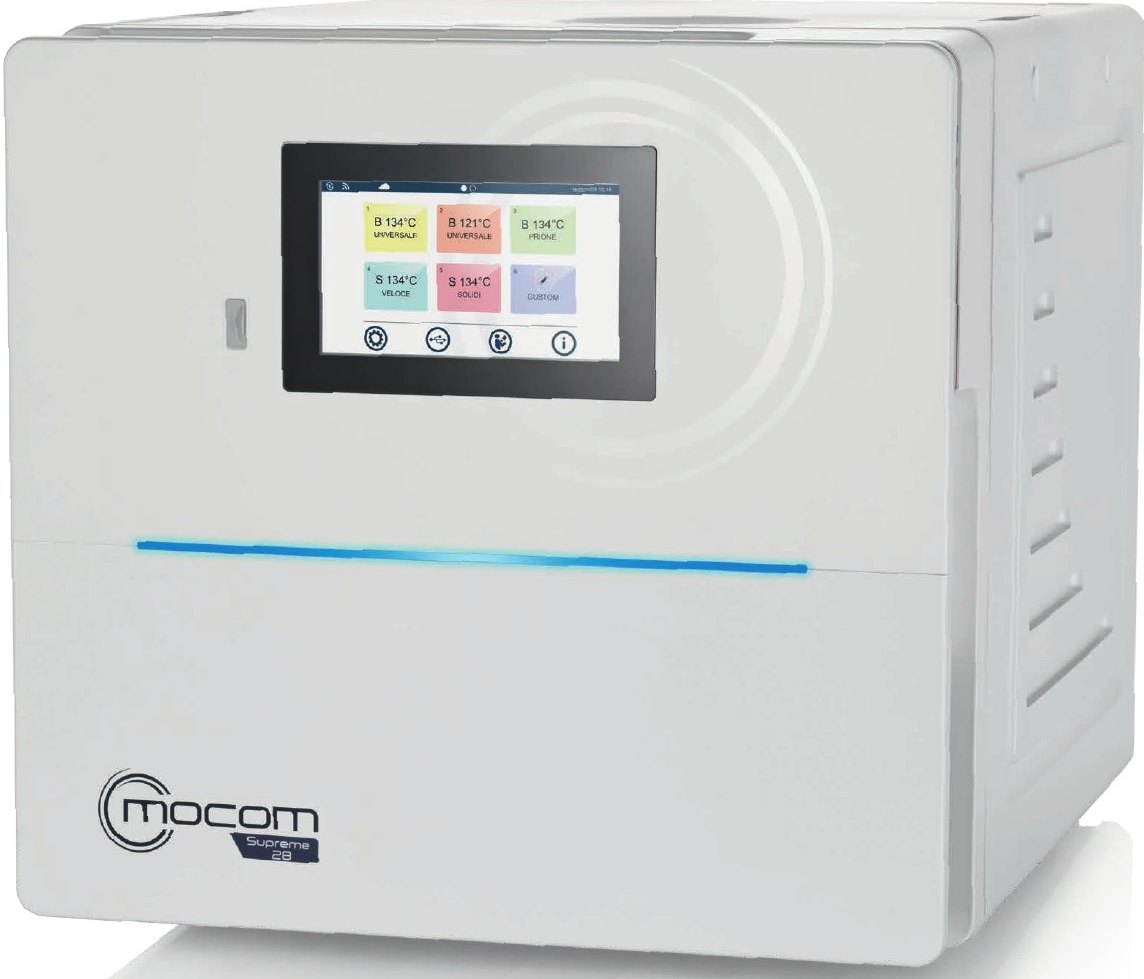

Mocom Supreme
The Mocom Supreme is Mocom’s top-tier autoclave, combining sterilisation performance with sustainability. Its water recirculation system purifies and reuses water so just 5 litres of mains water covers 50 cycles, while a 7″ touchscreen, LED status bar and NFC user access make it as easy to use as a tablet.
Key Features:
-

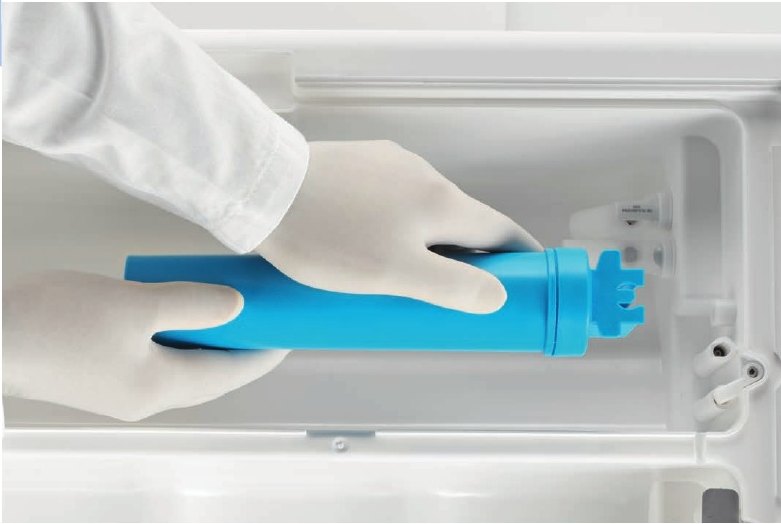

Water Savings: A recirculation filter demineralises and purifies used water for reuse: 50 sterilisation cycles from only 5 litres of mains water (about 100 ml per cycle).
-

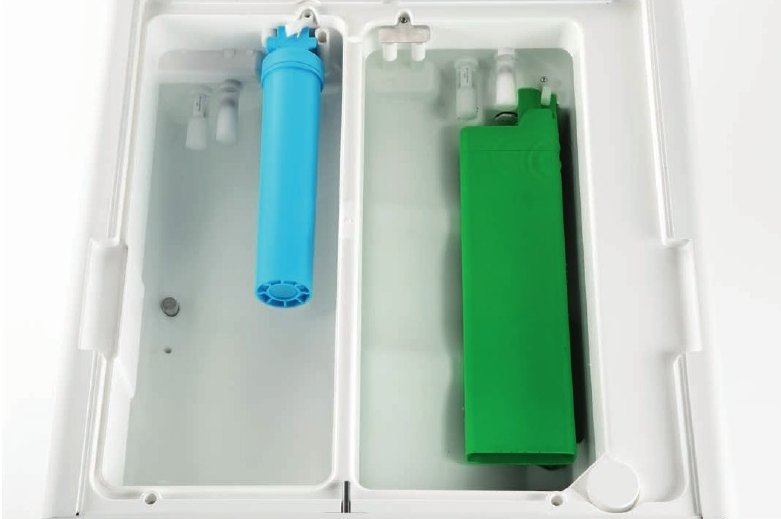

Integrated Demineralisation: A demineralisation filter in the main tank lets you fill with ordinary mains water; a conductivity sensor checks water quality and filter status, and filters are easy to replace with on-screen video guidance.
-
7″ Touchscreen: Tablet-style display with high-resolution video tutorials, load positioning and maintenance instructions, and on-screen cycle reports.
-

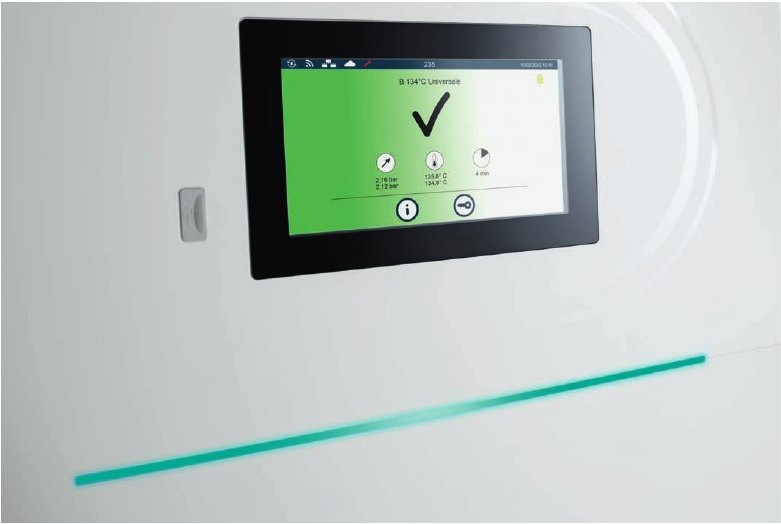

LED Status Bar: A light bar in the door changes colour with each phase so you can see the cycle status from across the room.
-

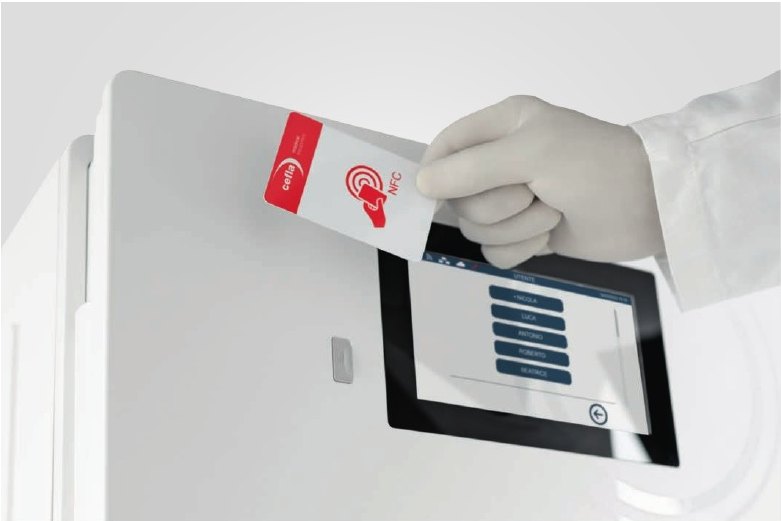

NFC User Access: Supplied NFC cards give authorised staff instant access and record user ID.
-

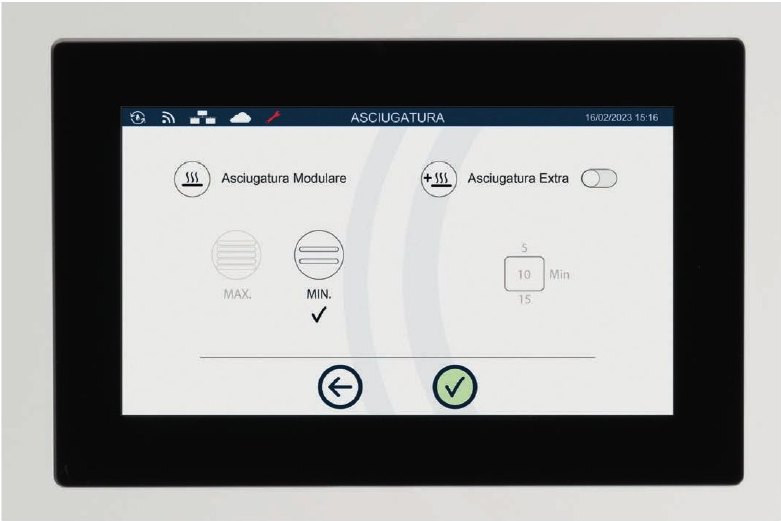

Modular Drying: Drying adapts to the load size for shorter cycles: a complete B cycle in 31 minutes.
-
Customisable Cycles: Five pre-set cycles plus a custom cycle, delayed start and extra drying.
-
SterilConnect App: Monitor and manage the steriliser from a smartphone or tablet.
-

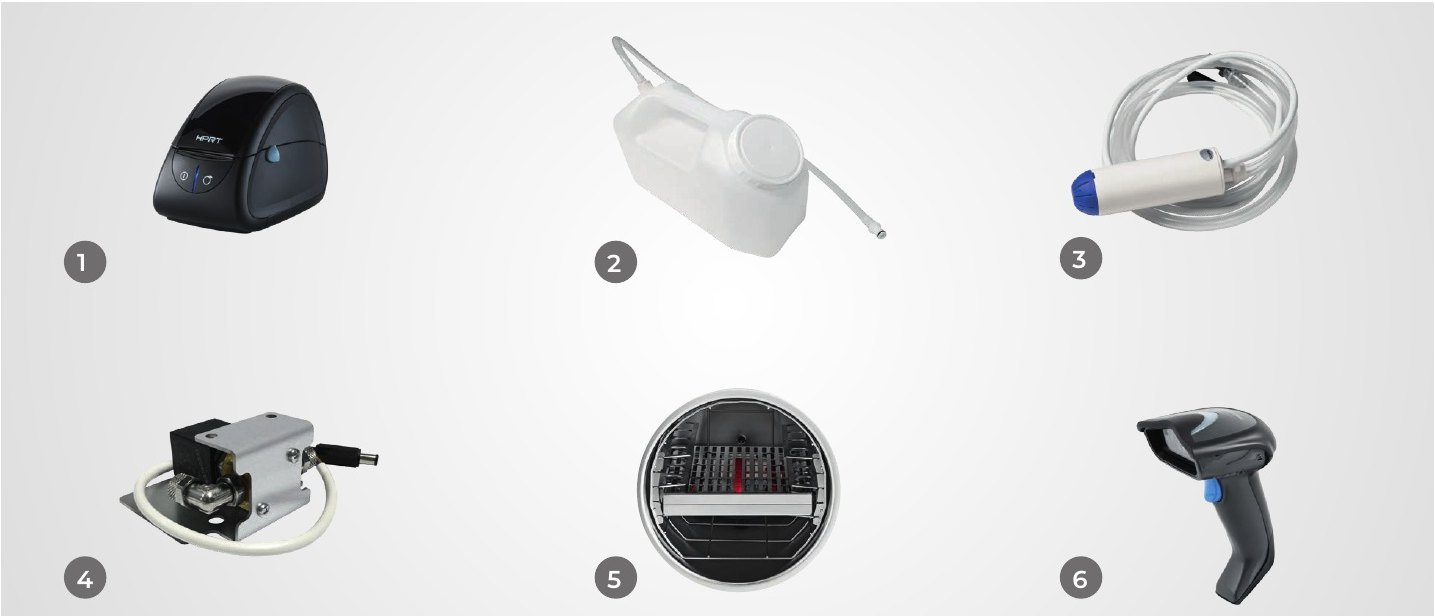

QR Code Labels and Shared Printer: Print QR code or barcode labels for full traceability; the optional printer can be shared between sterilisers.
-
Connectivity and Traceability: Wi-Fi and Ethernet connection for cloud platforms and automatic software downloads; up to 10,000 cycle reports stored and downloadable as PDF via USB or automatically with the supplied DataSter software.
-
Cloud Services (optional): Di.V.A. cloud environment for cycle reports, device status, video tutorials and usage statistics; EasyCheck remote technical support and software updates.
Technical Data:
-
Available volumes: 17, 22 and 28 litres (identical external dimensions)
-
Rated power: 2300 W
-
External dimensions (L x H x D): 500 x 490 x 600 mm
-

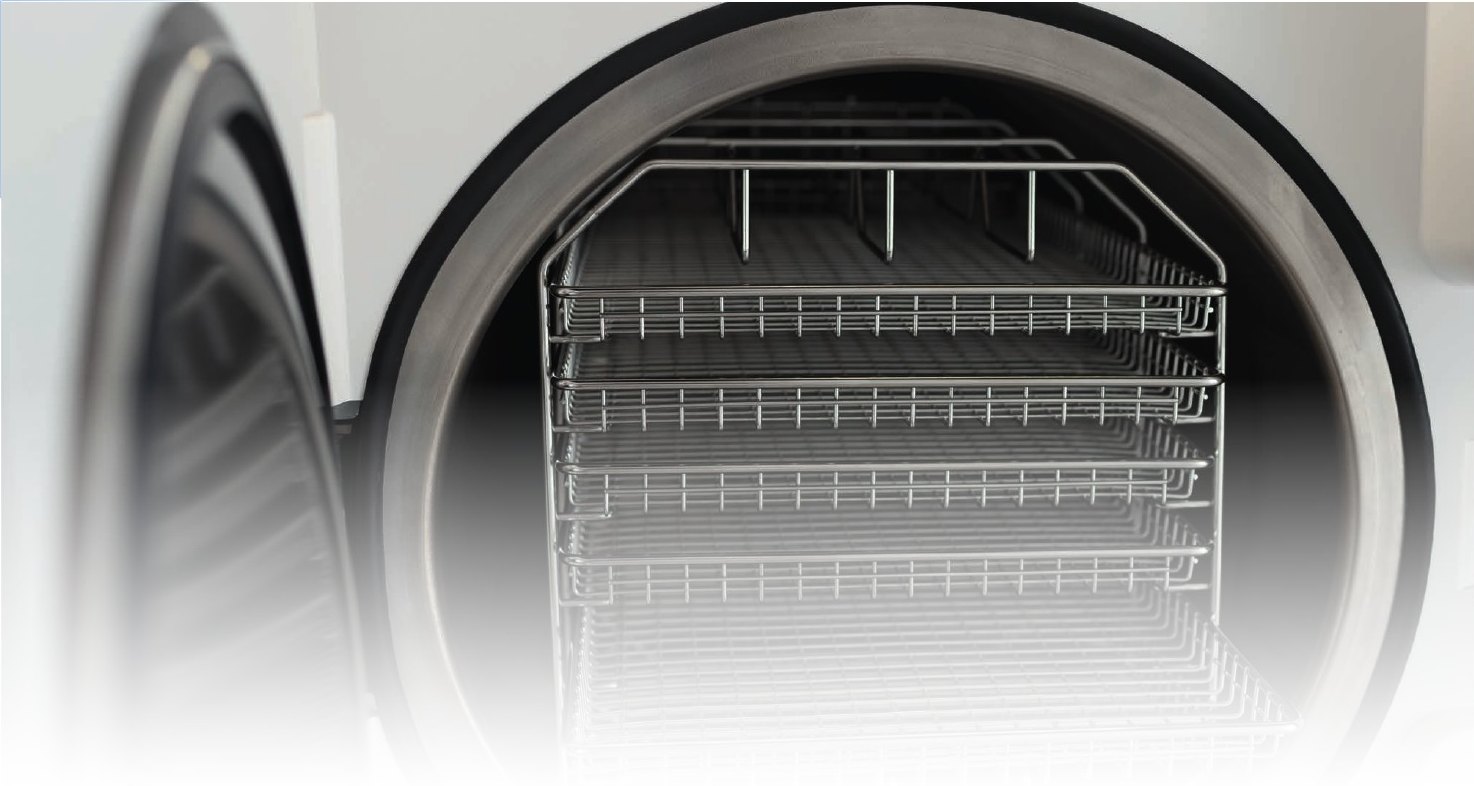

Chamber dimensions (diam. x depth): 17 L: 250 x 350 mm; 22 L: 250 x 450 mm; 28 L: 280 x 450 mm
-
Total weight: 17 L: 48 kg; 22 L: 51 kg; 28 L: 52 kg
-
134°C Universal cycle time (17 / 22 / 28 L): 39 (31) / 42 (34) / 52 (44) min, figures in brackets with Modular Drying
Please note: Cycle times are based on an average load and exclude pre-heating.
