Castellini Skema 6 Dental Unit | B Dental Engineering

Description

Castellini Skema 6

Skema 6 lets dentists address any clinical need, even specialist disciplines, with cutting-edge technology and exceptional ease of use. Designed for the most versatile and demanding dentists, it comes in a wide range of configurations for maximum operating comfort.

Key Features:

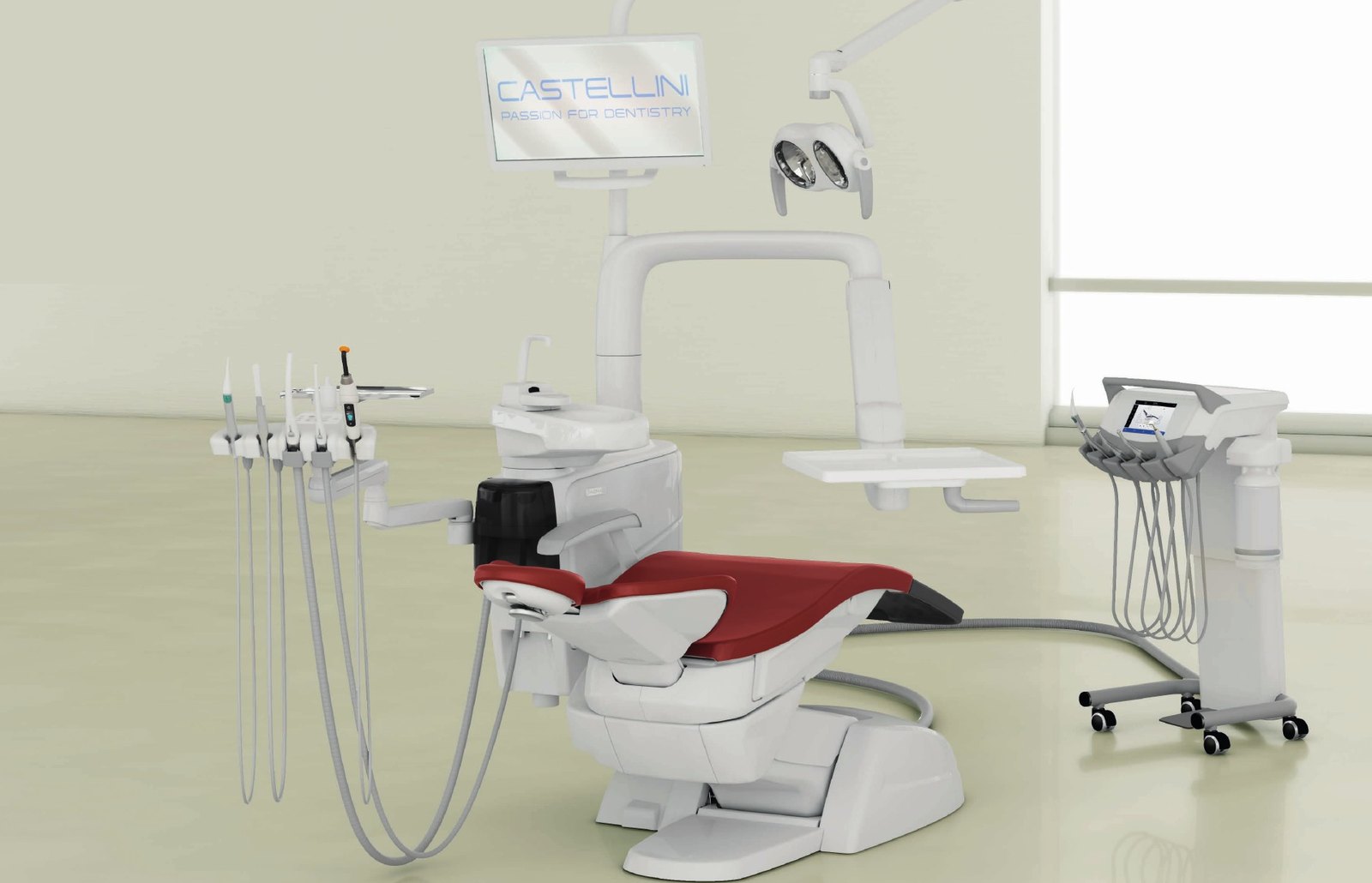

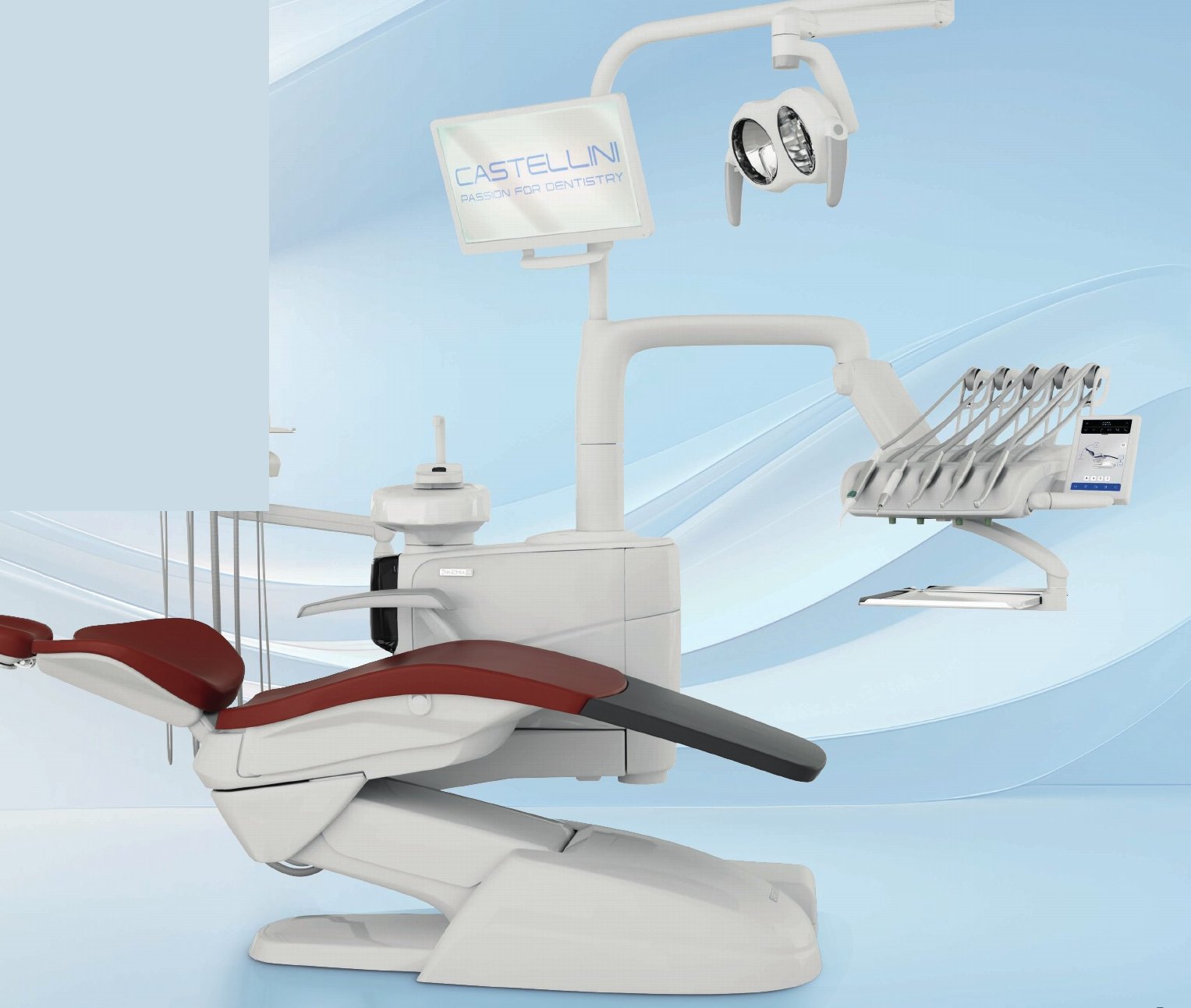

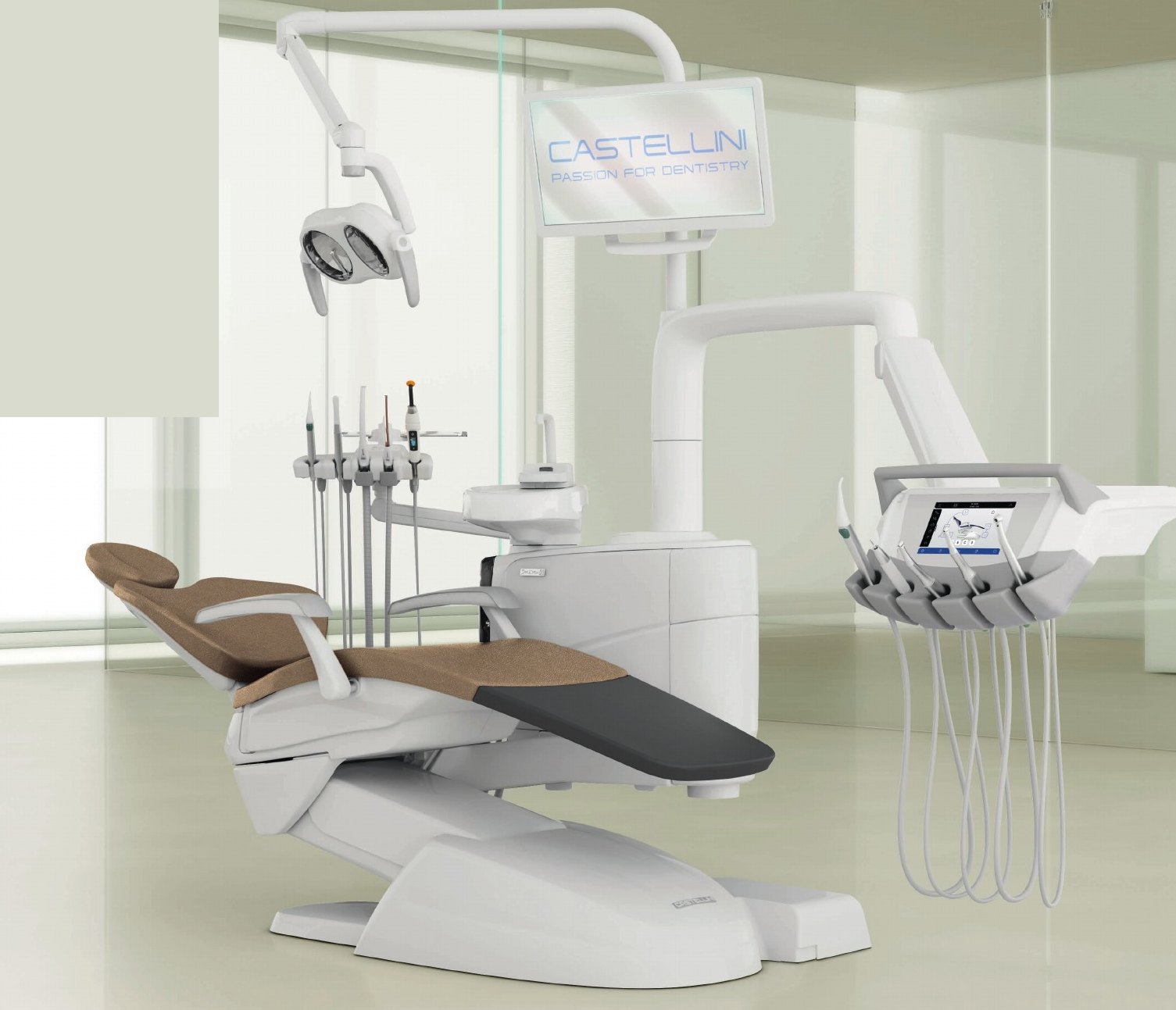

Versions: Skema 6 with over-the-patient delivery, Skema 6 CP for hanging-tube instruments with a flexible assistant’s module, and Skema 6 CART for complete freedom of movement.
Full Touch Interface: 7″ capacitive multitouch display in Clinic or Multimedia versions, with 4 user profiles as standard, NFC bracelet access to up to 20 saved set-ups, USB profile transfer and voice controls.
Implant Surgery: Implantor LED induction micromotor, peristaltic pump with sterile saline irrigation, easily adjusted operating parameters and torque curve logging.
Endodontics: Reciprocating mode, built-in file database, LAEC integrated apex locator with APEX-STOP and EVO E4 contra-angle.
Excellent Instruments: Surgison 2 surgical ultrasound, Piezolight 6 / Piezosteril 6, Implantor LED FLUO, syringe, T-LED, Silent Power turbines and Goldspeed contra-angles.
Operating Comfort: Light, compact dentist’s module with SideFlex levers, and an assistant’s module with an optical sensor.
Customisable Chair: Nordic backrest, exclusive pneumatic orbital headrest, adjustable footrest and Memory Foam option.
Foot Controls: Lateral slide, pressure-operated or Power Pedal foot controls, in wired and wireless versions.
Operating Light: Venus LED MCT with adjustable brightness up to 50,000 lux and warm, neutral or cool colour temperature plus composite mode, or Venus LED MCT View with an integrated 4K camera.
Certified Hygiene: Autosteril automatic disinfection of the water circuits (tested by Sapienza University of Rome), M.W.B. continuous disinfection, S.S.S. separate water supply bottle, Time Flushing and S.H.D. suction disinfection.
Protected by Design: Detachable tubing, and removable module handles, lamp handles, instrument levers, cuspidor parts and cannula guides.
Integrated Diagnostics: Integrated HD intraoral camera and 22″ medical monitor, plus the RXDC X-ray unit with eXtend technology and an integrated X-ray sensor.
Connected Surgery: Di.V.A. digital virtual assistant with a dashboard for usage, hygiene cycles and instrument modes, plus EasyCheck remote diagnosis and technical support.

Technical Data:

Versions: Over-the-patient, CP (hanging tubes), CART
Patient chair height: 370 – 800 mm
Control: 7″ Full Touch (Clinic or Multimedia)

Please note: Some features shown are optional.

Additional information

Versions	Over-the-patient, CP (hanging tubes), CART
Model	Skema 6

Versions	Skema 6 (over-the-patient), Skema 6 CP (hanging tubes), Skema 6 CART
Patient chair height	370 – 800 mm
Control panel	7″ Full Touch capacitive multitouch, Clinic or Multimedia; 4 user profiles; NFC bracelet (up to 20 memory slots); USB profile transfer; voice controls
Implantology	Implantor LED micromotor, Goldspeed EVO R20-L contra-angle, peristaltic pump, torque curves
Endodontics	Reciprocating mode, file database, LAEC integrated apex locator, EVO E4 contra-angle
Instruments	Surgison 2, Piezolight 6 / Piezosteril 6, Implantor LED FLUO, syringe, T-LED, Silent Power turbine, Goldspeed contra-angles
Dentist’s module	Light, compact module with SideFlex levers
Assistant’s module	Optical sensor
Patient chair	Nordic backrest, pneumatic orbital headrest, adjustable footrest; standard or Memory Foam upholstery
Foot control	Lateral slide, pressure-operated or Power Pedal
Operating light	Venus LED MCT / MCT View; composite mode; warm, neutral and cool colour
Hygiene	Autosteril, Time Flushing, S.S.S. bottle, M.W.B., S.H.D.
Multimedia and diagnostics	Integrated HD camera, 22″ monitor, RXDC with eXtend technology
Connectivity	Di.V.A. dashboard and remote monitoring, EasyCheck
