Description

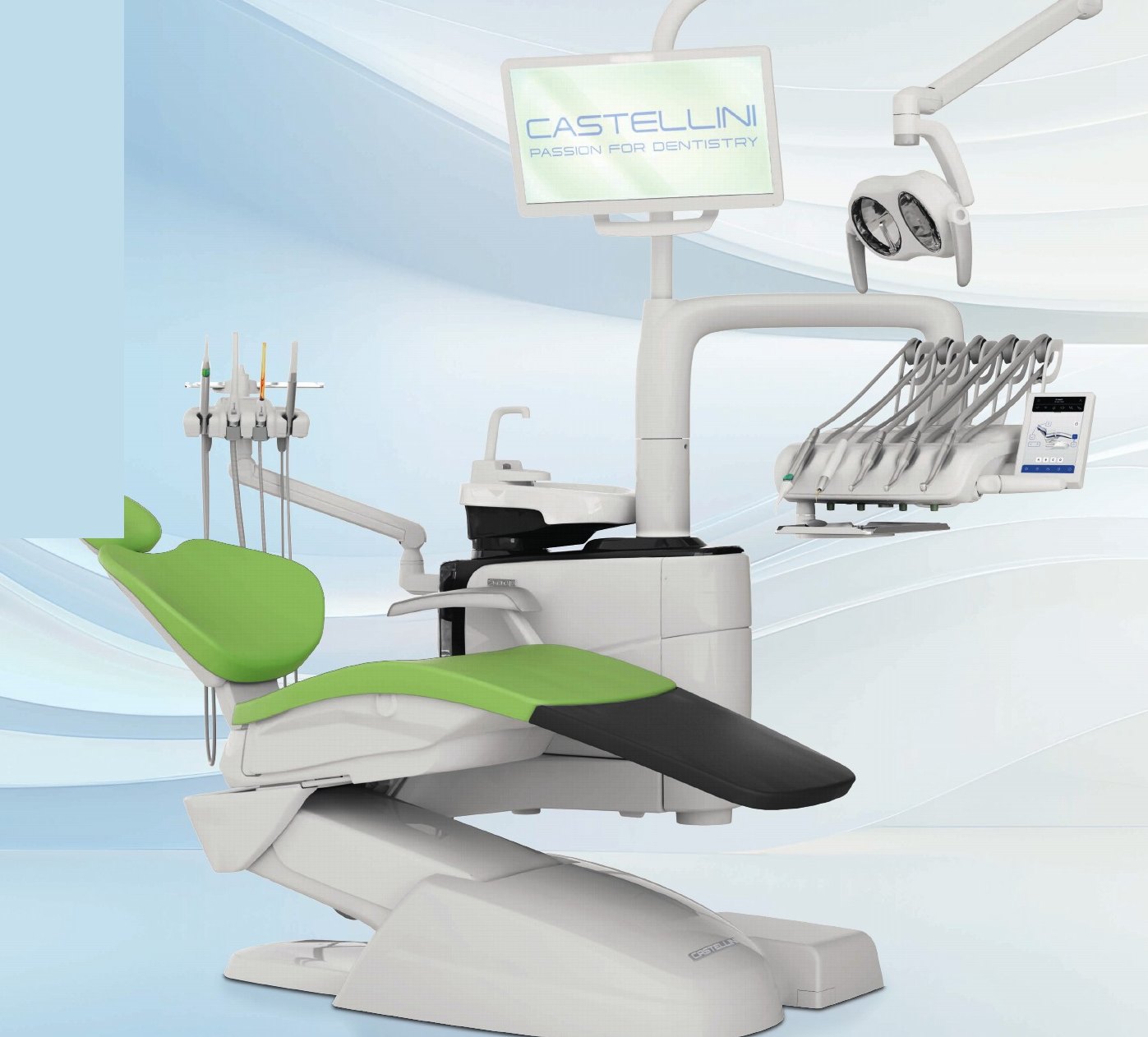

Castellini Skema 8
In keeping with Castellini’s hallmark quality, the revolutionary Skema 8 offers across-the-board improvements. With cutting-edge technology and a fully renewed design, it delivers outstanding performance to meet even the highest expectations.
Key Features:
-

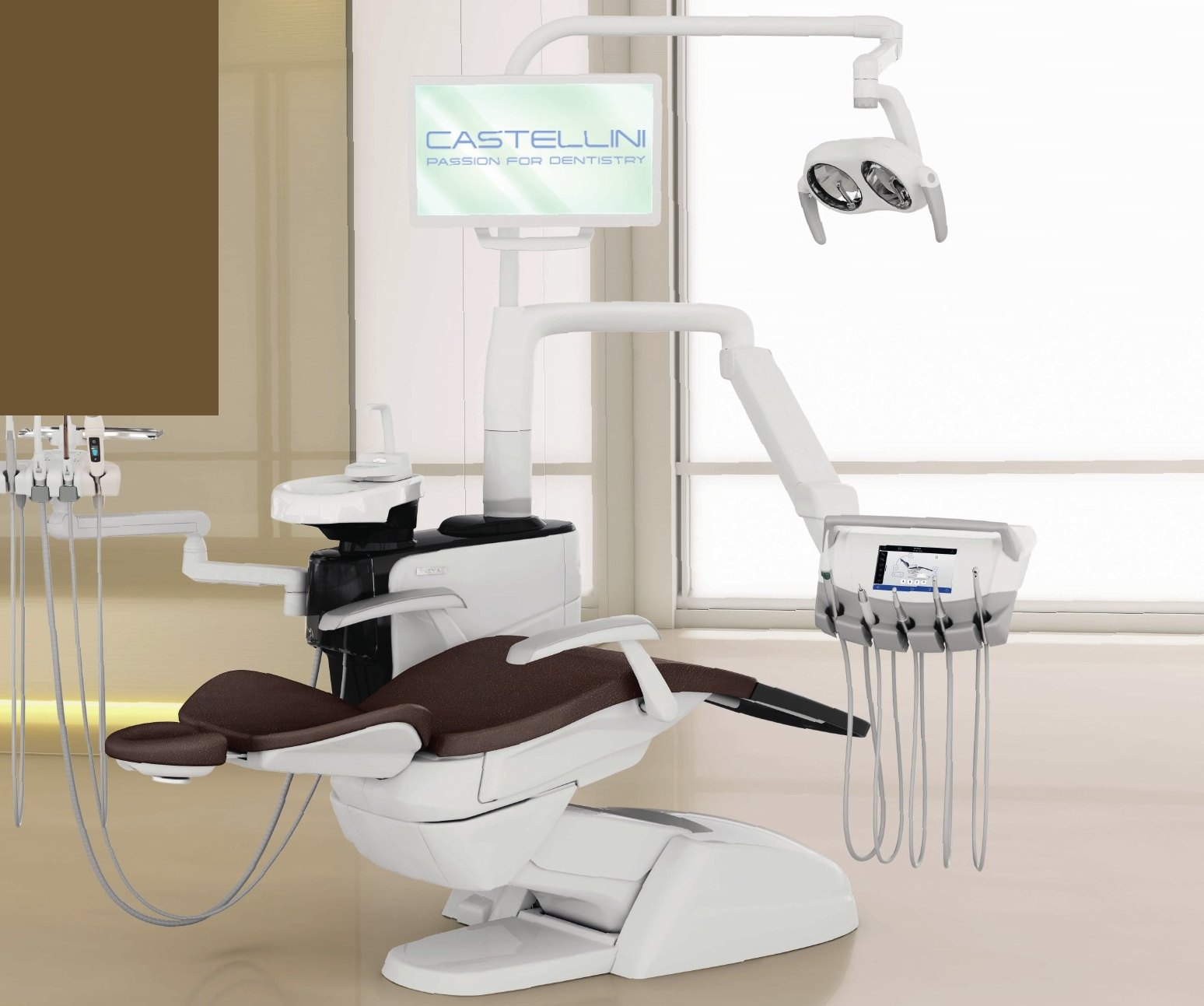

Versions: Skema 8 with over-the-patient delivery, and Skema 8 CP for dentists who prefer hanging-tube instruments and work mainly at 12 o’clock.
-

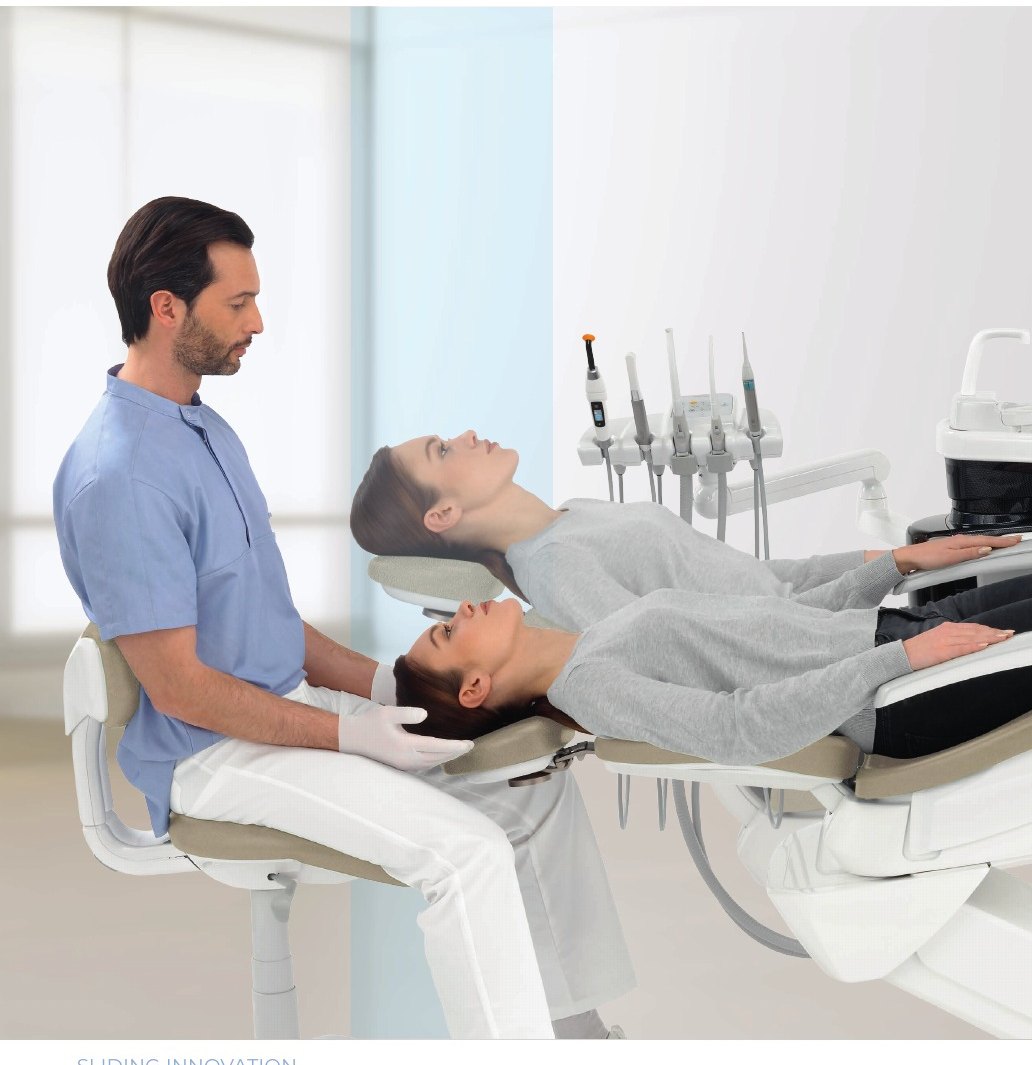

Sliding System: Combines backrest lowering with forward seat movement, so the working area stays the same and the dentist gains 18 cm at 12 o’clock. Soft Motion keeps movement silent, and Slow Mode allows fine adjustments for implantology or microscope work.
-

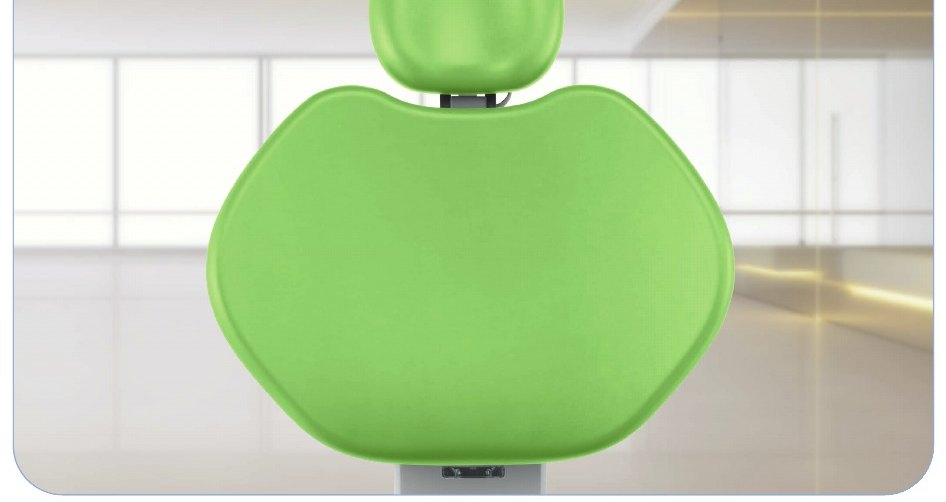

Personalised Patient Comfort: Patient presence sensor with stand-by and automatic light switching, exclusive pneumatic orbital headrest, Nordic backrest and smart backrest shaping.
-
Versatile Installation: Connects to floor outlets under the leg rest or under the front of the unit body.
-
Full Touch Interface: 7″ multitouch console to control instruments, hygiene systems and implant/endo/conservative functions, and display images, X-rays and video tutorials. 4 user profiles as standard, NFC bracelet access to up to 20 saved set-ups, and voice controls.
-
New Era of Design: SideFlex levers, compact tray holder, balanced instruments and the Light&Easy module, with a transthoracic tray holder and sixth instrument on the CP.
-
Cup Sensor and Motor-Driven Cuspidor: Automatic cup filling and a motor-driven cuspidor bowl.
-
Implant Surgery: Implantor LED induction micromotor, peristaltic pump with sterile saline irrigation, easily adjusted operating parameters and torque curve logging.
-
Endodontics: Reciprocating mode, built-in file database, LAEC integrated apex locator with APEX-STOP and EVO E4 contra-angle.
-
Specialist Performance: Surgison 2 surgical ultrasound with sterile irrigation, Piezolight 6 / Piezosteril 6, Implantor LED FLUO, T-LED, Silent Power Evo turbines and Goldspeed Evo contra-angles.
-
Operating Light: Venus LED MCT / MCT View with adjustable temperature and CRI, composite mode and optional voice control.
-
Foot Controls: Lateral slide, pressure-operated or Power Pedal foot controls, in wired and wireless versions.
-
Certified Hygiene: Autosteril automatic disinfection of the water circuits (tested by Sapienza University of Rome), M.W.B. continuous disinfection, S.S.S. separate water supply bottle, Time Flushing and S.H.D. suction disinfection.
-
Protected by Design: Detachable instrument tubing, removable and autoclavable lamp and module handles, and removable, autoclavable cuspidor bowl parts for easy infection control.
-
Connected Surgery: Di.V.A. digital virtual assistant with a dashboard for usage, hygiene cycles and instrument modes, plus EasyCheck remote diagnosis and technical support.
-
Integrated Diagnostics: Integrated HD intraoral camera and 22″ medical monitor, plus the RXDC X-ray unit with eXtend technology and an integrated X-ray sensor.
Technical Data:
-
Versions: Over-the-patient, CP (hanging tubes)
-
Patient chair height: 370 – 800 mm
-
Chair movement: Sliding system (18 cm), Soft Motion, Slow Mode
Please note: Some features shown are optional.
